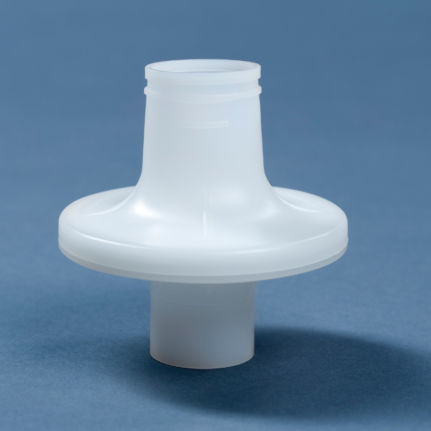

Spirometer filter NEUMOFILT ERGO
air

spirometer filter
spirometer filter
spirometer filter
Add to favorites
Compare this product


Characteristics

Fluid
air
Applications
for spirometers

Description

Description The NeumoFilt Ergo Filter has been designed to allow the patient’s teeth and lips to adapt comfortably to the mouthpiece to prevent air leakage. The Filtration media has proved a filtration efficency level without precedents with a low resistance to air flow. Technical Specifications BFE (a 30L/min.): 99,999980 % VFE (a 30L/min.): 99,999909 % BFE (a 55L/min.): 99,997649 % (5 minutes test) VFE (a 55L/min.): 99,998660 % (5 minutes test) BFE (a 750L/min.): 99,502439 % (5 minutes test) VFE (a 750L/min.): 99,987339 % (5 minutes test) Resistance to flow: 94,3 Pa/l/s a 14 l/s Maximum resistance recommended by the ATS: 150 Pa/l/s a 14 l/s Dead space: 70 ml Patients: Children and adults BFE: Bacterial filtration efficency VFE: Virus filtration efficency Delivery Options NeumoFilt Ergo is supplied individually in boxes of 100 units and also with the following Pack possibilities: Pack Plus: It is a pack consisting of the NeumoFilt Ergo filter and the NeumoClip nose clip Pack Confort: It is a pack consisting of the NeumoFilt Ergo filter and the NeumoBit rubber mouthpiece Pack Confort Plus: It is a pack consisting of the NeumoFilt Ergo filter, the NeumoClip nose clip and the NeumoBit rubber mouthpiece Certifications Product certified as class IIa, according to 93/42/EEC medical devices directive References: 1121/100 Jaeger, Sensormedics, M.E.C., Geratherm 1223/100 KOKO 1224/100 MedGraphics 1225/100 MIR, Micromedical, Vitalograph 1226/100 Cosmed, Medisoft Usable for the following tests: Spirometry, Flow / Volume curves Pulmonary Diffusion Capacity Pulmonary volumes by rebreathing He Pulmonary volumes per wash N2 Body plethysmography Airway resistances Compliance

VIDEO
