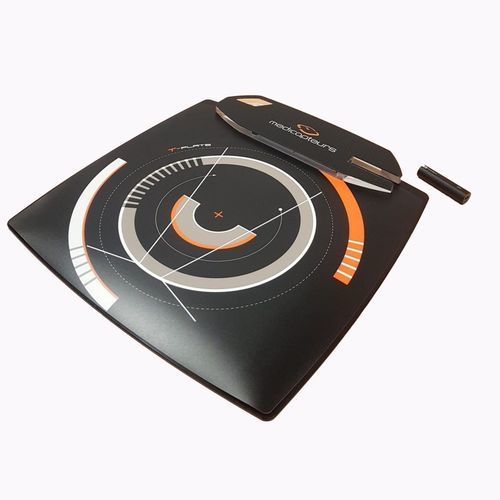

Portable baropodometry plateform T-PLATE

T-PLATE foot pressure plate is the most accurate and cost-effective way to identify the plantar pressure profile. Traditional tools cannot provide the same information as the T-Plate. It will increase your credibility and most of all help you make the good diagnosis. A modern exam Provide an easy and efficient patient follow up (up to 4 exams comparison) Real Time display Immediate storage or load of recorded exams Visual provides attractive screens to falicitate patient communication and understanding Mechanical Features Size (Lenght / Width / Height) - 565x612x22 mm Thickness - 8 mm Weight - 3,1 kg Material - Plexyglas Electronic Features Sensing area - 400 mm * 400 mm Sensors - Resistive Sensors size - 10 mm * 10 mm Number of sensors - 1 600 Acceptable temperature - from 0 °C to + 60 ° C Min to Max pressure per sensor - from 0,4 N to 100 N Sampling rate - 100 Hz / 150Hz Wifi Plateform computer interface - USB or Wifi Power supply - USB wire / Lith battery Required operation system - Windows Seven, 8,10
