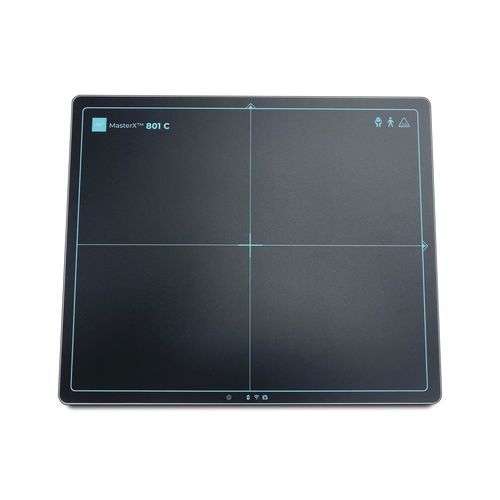

Multipurpose radiography flat panel detector MasterX® 801C

portablewirelesswaterproof

Product highlights

• 14″x17″ CsI digital radiography (DR) detector; cassette-sized panel with wireless connectivity
• Includes 2 batteries and battery charger; battery autonomy ≈ 8 hours
• <1 s acquisition time; <3.6 s cycle time for efficient throughput
• 140 µm pixel pitch, 16-bit depth (65,535 gray levels)
• CsI scintillator with A‑Si photodiode array for low-dose imaging
• IP54-rated panel (dust and splash resistant); Mg‑Al alloy housing
• Weight: 2.7 kg; drop tolerance: 70 cm; durability: face load 300 kg / point load 120 kg
• Voyance® Acquire and Voyance® VPacs included (up to 10 viewing licenses)
• 5-year manufacturer parts warranty on DR panel and 5-year panel protection plan

Technical details
Outline dimensions (ISO4090): 14" x 17" | 383 x 460 x 15 mm
Sensor array: A‑Si photodiode
Scintillator: CsI (Cesium Iodide)
Resolution: 2,500 x 3,052
Pixel size: 140 μm
Grayscale: 16-bit (65,535 shades)
Wifi: 802.11ac / 2 antennas / AP mode / 2s scan display
Drop height: 70 cm
Housing material: Mg‑Al alloy
Weight: 2.7 kg
Waterproof / ingress protection: IPX6 (table) / IP54 (panel)
Durability (face load / point load): 300 / 120 kg
Battery autonomy: ~8 hours (2 batteries included)
Trigger mode: Lossless AED supported
Accessories: Battery, magnetic connector cable with Ethernet and power
Operation temperature / humidity: 10 ̃ 35 °C / 15 ̃ 80%

Technical specifications

• Model: MasterX 801C
• Detector type: CsI scintillator with A‑Si photodiode sensor array
• Active area / Size: 14″ x 17″ (cassette sized)
• Resolution: 2,500 x 3,052 pixels
• Pixel pitch / size: 140 μm
• Grayscale / bit depth: 16-bit (65,535 shades)
• Dimensions: 460 x 460 x 15 mm (listed also as 383 x 460 x 15 mm per ISO4090)
• Weight: 2.7 kg (5.9 lbs)
• Wireless: 802.11ac, 2 antennas; AP mode; 2s scan display
• Acquisition / cycle time: <1 s acquisition; <3.6 s cycle time
• Ingress protection: IP54 (panel); table entry IPX6
• Durability: face load 300 kg / point load 120 kg; drop tolerance 70 cm
• Battery: 2 batteries included; charger included; autonomy ~8 hours
• Trigger mode: AED / lossless AED
• Accessories: battery, magnetic connector cable with Ethernet and power
• Software: Voyance® Acquire and Voyance® VPacs (up to 10 viewing licenses)
• System option: 1 TB HDD Dell workstation with 24″ monitor or Dell laptop option
• Warranty: 5-year manufacturer parts warranty on DR panel; 5-year panel protection plan
