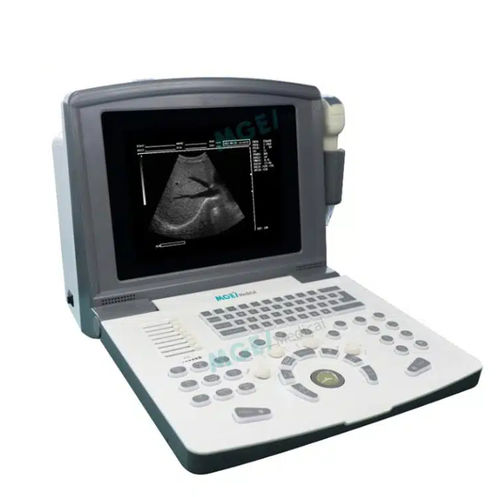

Portable ultrasound system MGE-UMKR12

for abdominal and pelvic ultrasound imagingfor gynecological and obstetric ultrasound imagingfor cardiovascular ultrasound imaging

Product overview
The MGE-UMKR12 is a portable full-digital black-and-white ultrasound diagnostic system intended for routine grayscale imaging and measurement workflows in clinical examination rooms. The unit supports two probe connectors, multiple display modes (B, B+B, B+M, M, 4B), VGA/PAL external output and cine loop review. Image orientation, dynamic range, focus and enhancement parameters are adjustable during examinations.

Key points

• 10-inch LCD display with 256-level grayscale
• Two probe ports for simultaneous transducer connections and quick switching
• Included standard 3.5 MHz R60 convex probe
• Display modes: B, B+B, B+M, M, 4B; cine loop ≥400 frames

Clinical applications

• Suitable for general abdominal, obstetric, gynecologic, urologic and basic cardiac assessments
• Supports convex, linear, micro-convex and transvaginal probes; includes veterinary pregnancy measurement templates

Features

• Real-time image controls: tissue harmonic imaging, pseudo-color, inversion, local zoom up to 2×, smoothing and sharpening
• Measurement and reporting tools: distance, circumference, area, volume and obstetric/cardiac calculation templates
• Selectable focus points, adjustable dynamic range and frame-by-frame cine review for recent sequences
• External printing via connected computer; VGA and PAL video outputs supported

Scope of supply and options

• Standard: main unit, 3.5 MHz R60 convex probe, probe holder, power adapter and cable, user manual, warranty and QA documents
• Optional accessories: 7.5 MHz linear probe, 5.0 MHz micro-convex probe, 6.5 MHz transvaginal probe, puncture guide, 4400 mAh rechargeable battery, computer-connected printing solution

Technical specifications

• Model: MGE-UMKR12
• Brand: MGE Health
• Product type: Portable full-digital B/W ultrasound diagnostic system
• Display: 10-inch LCD; grayscale: 256 levels
• Probe interfaces: 2; scanning methods: electronic convex and linear arrays
• Scanning depth: ≥160 mm with standard convex probe; adjustable
• Cine loop: ≥400 frames; image storage/export: cine playback only; printing via connected PC
• Focus points: 1 or 2 selectable; dynamic range adjustable
• Power supply: AC 100–240 V, 50/60 Hz; max power consumption: 100 VA
• Product dimensions: 289 × 304 × 222 mm; net weight: 7 kg; gross weight: 8 kg
