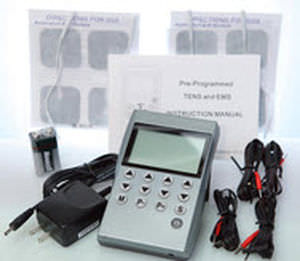

Electric stimulator MH8002

hand-heldTENSEMS

The MH8002 Four Channels unit integrates EMS and TENS functions with 7 treatment modes. This unit is a hybrid stimulator which is designed for muscle stimulation and pain relief. Features: ■ TENS and EMS Two in one ■ Large LCD Display easier for elder users to read ■ DC 9V battery and / or mains power adaptor ■ Key Pad control, auto-locked to avoid accidental touch ■ Adjusting Intensity Level precisely ■ Clear Treatment Time ■ Compliance Meter, 100 sets of therapy session records ■ ON and OFF time indicator ■ Low battery indicator SPECIFICATION S: EMS Synchronous, A: EMS Alternate, N: Normal, M: Mixed Frequency, B: Burst, SD: Width Modulation, MR: Rate Modulation Channel：Four, isolated between channels Intensity：Adjustable 0-100mA, Max output 100mA peak to peak into 500ohm load each channel. Wave form：Asymmetrical rectangular biphasic pulse. Intensity：Adjustable 0-100mA, Max output 100mA peak to peak into 500ohm load each channel. Power source：DC 9V battery and / or mains power adaptor. Pulse Rate：2Hz~20 Hz in 1 Hz/step and 20~ 120 Hz in 5 Hz/step. Pulse Width：50uS~400uS, 10uS/step Output mode：S, A, N, M, B, SD, MR ON (Contraction) Time：2~90 seconds OFF (Relaxation) Time：2~90 seconds Ramp-up Time：1~8 seconds Ramp-down Time：1~8 seconds Timer：5~90 Minutes or continue.
