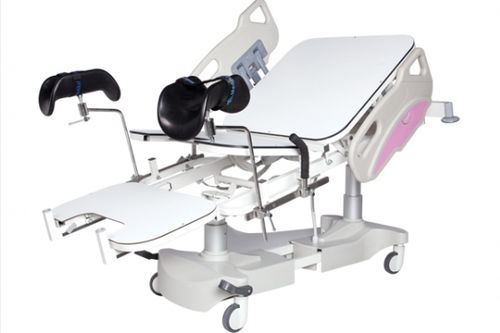

delivery bed / electric / Trendelenburg / height-adjustable
M-2 DX S / JX-02



  • Applications:


  • Operation:


  • Features:

    Trendelenburg, height-adjustable, reverse Trendelenburg

  • Other characteristics:

    on casters

  • Number of sections:



Technicial Specifications
• Metal parts coated with zinc phosphate and varnished with electrostatic epoxy polyester powder

• Easily cleanable, three-piece compact laminate lying surface.

• X-Ray permeable lying surface

• Headboard and footboard made of mono-block PP materials

• Side rails made of mono-block PP materials

• IV pole inserts and protective bumpers on the two corners of headboard

• IV pole and drainage hook

• DC motors protected from over current and that need no lubrication

• High strength hinges made of composite materials

• Minimum IPX4 protection

• 125 mm diameter castors with a directional lock, central locking system and capable of turning 360°

• Electronic adjustments of backrest, legrest, height-up&down, Trendelenburg, Reverse Trendelenburg positions by using Remote Control Unit

• Remote control Unit

• Electronically CPR (Reset)

• Equipped with powerfull column motors

• Two-piece ABS plastic covered lower chassis

• Chrome-Nickel coated accessories against corrosion

• Easly removable chrome nickel material waste bowl

• Adjustable handles and leg supports

• Sliding foot section mechanism

• Angle indicators on the side rails

• Back up battery for non-stop operation in case of power failure

• Leakage currents & ground fault protection

• Mattress with 12 cm thickness suitable for lying surface
