Mobile surgical light OceanLED

LEDfor operating rooms97

Product Overview
OceanLED surgical lights use a patented double-reflector technology to produce a uniform, soft surgical field illumination. The ring-light source combined with the double-reflector system reduces shadows and eye fatigue, offers multiple dedicated surgical modes, includes an iCARE eye comfort mode, and supports optional in-light 4K camera integration for documentation and teaching.

Certifications & Awards

• CE mark
• IEC60601-1, IEC60601-1-2, IEC60601-2-41
• DNV ISO9001
• DNV ISO13485
• Red Dot Award Product Design 2023

Key Features

• Patented double reflector system (multi-reflection process) softens illumination and minimizes shadows, enabling excellent visibility including in deep surgical cavities.
• iCARE mode to reduce eye strain during long procedures.
• Depth of illumination optimized to 77 cm (L1+L2 at 60%).
• Multiple surgical mode selection: four specialized modes to suit different procedures.
• Adjustable MIS ambient light color with a color bar (applicable to i6) to optimize monitor contrast and team preference.
• Dynamic Shadow Management (DSM) for consistent illumination and rapid shadow compensation.
• Modular handle design to support detachable in-light 4K camera modules and other functional modules; compatible with QuadLED and OceanLED light heads.
• Streamlined modern design with integrated non-sterile ergonomic handle to minimize airflow obstruction and enable precise positioning.
• Wireless remote and synchronized control, including frameless 4.3” touch panel display; optional wireless wall control with preset functions.

Specification Table
Central Illuminance EC,Ref (at 100cm distance) (lux): 140,000
Central Illuminance EC,MI (at 102cm distance) (lux): ≤160,000
Color Temperature (K): 3,500–5,000
Color Rendering Index (CRI): 97
Red Color Index (R9): 97
Irradiance / luminous intensity Ee/Ec (mW/m² per lux): 3.7
Light Field, d50/d10 (%): 65
Depth of Illumination - L1+L2 (mm), 60(%): 770
Pattern Size, d10 (cm): 18–32 [mode dependent]
Shadow Dilution (DSM): 100% (One Mask) / 83% (Two Mask) / 98% (One Mask + Simulated Cavity) / 80% (Two Mask + Simulated Cavity)
Ingress Protection Rating: IP54

Available Configurations

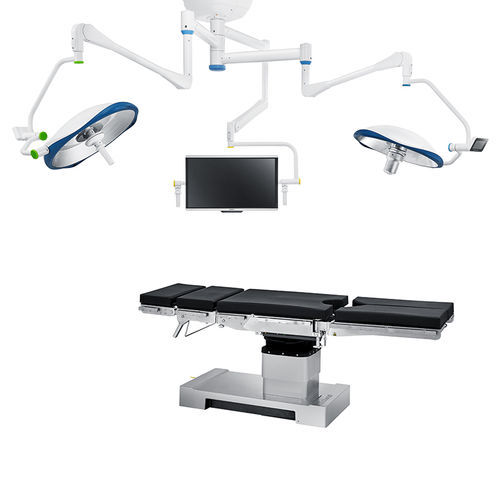

Supported configurations: Single Arms, Dual Arms, Triple Arms, Mobile
Model/variant examples: OceanLED6, OceanLEDi6; OceanLED66, OceanLEDi66, OceanLED6B, OceanLEDi6A, OceanLEDi6B; OceanLED666, OceanLED66B, OceanLEDi666, OceanLEDi66A, OceanLEDi66B, OceanLEDi6AB; Mobile variants: OceanLED6M, OceanLED6MB, OceanLEDi6M, OceanLEDi6MB
Notes on accessories/options: A = LCD support suspension arm (24" to 32"), B = camera suspension arm for box camera installation, M = Mobile, MB = Mobile with built-in batteries

Technical Specifications

• Series / Name: OceanLED
• Central illuminance (EC, Ref at 100 cm): 140,000 lux
• Central illuminance (EC, MI at 102 cm): ≤160,000 lux
• Color temperature range: 3,500–5,000 K
• CRI: 97
• R9 (red color index): 97
• Irradiance Ee/Ec: 3.7 (mW/m² per lux)
• Light field uniformity d50/d10: 65%
• Depth of illumination (L1+L2, 60%): 770 mm (77 cm)
• Pattern size (d10): 18–32 cm (mode dependent)
• Shadow dilution (DSM): up to 100% (one mask) with various combinations as specified
• Ingress protection rating: IP54
• Mounting/configurations: Single/Dual/Triple arms, Mobile, Battery mobile (MB)
• Optional: iCARE eye comfort mode, adjustable MIS ambient light color, detachable in-light 4K camera module, wireless remote and wall control, frameless 4.3" touch panel
