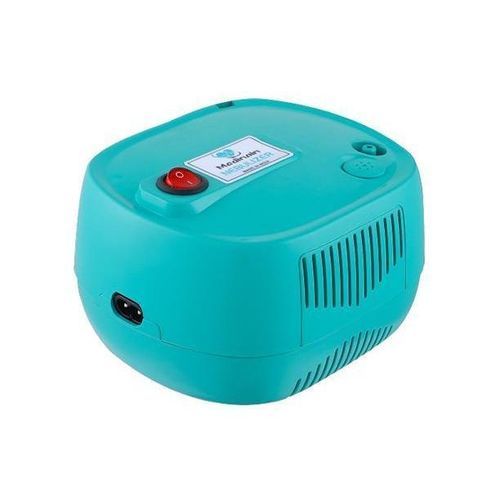

Pneumatic nebulizer for respiratorycompactportable
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Applications
- for respiratory
- Configuration
- portable, compact
- Accessories
- with compressor
- Flow
Min.: 5 l/min
(1.32086 us gal/min)Max.: 8 l/min
(2.113376 us gal/min)- MMAD
3 µm
- Noise level
1 dB
- Length
16.2 cm
(6.38 in)- Width
14 cm
(5.51 in)- Height
9.7 cm
(3.82 in)- Weight
1.34 kg
(2.95 lb)
Description
Product overview
Key specifications
Clinical use and performance
Operating conditions
Package and maintenance
- Compressor nebulizer for respiratory drug delivery.
- Model N-160.
Key specifications
- Power: AC 230V-50Hz
- Input power: 160VA
- Rated current: 0.7 A
- Maximum medicine cup capacity: 6 ml
- Average nebulization rate: <0.25 ml/min (0.9% saline solution)
- Max working pressure: <0.35 Psi (345 Kpa; 35 Bar)
- Operation pressure range: 9.16 Psi (62–110 Kpa; 0.6–1.1 Bar)
- Flow (liter operation): 5–8 LPM
- Noise: <0.53 dB(A) at 1 m distance
- MMAD: 3.0 µm (0.9% saline, tested by cascade impactor)
- Unit size: 162 x 140 x 97 mm
- Unit weight: 1.34 kg
- Temperature range: +5°C to +40°C
- Humidity range: 15% RH to 93% RH
Clinical use and performance
- Delivers aerosol with MMAD ~3.0 µm suitable for lower and upper airway deposition depending on therapy.
- Average nebulization rate <0.25 ml/min supports controlled dosing with standard saline solution.
- Operates at 5–8 LPM flow for consistent aerosol generation in clinical and outpatient settings.
Operating conditions
- Recommended ambient temperature: +5°C to +40°C.
- Recommended relative humidity: 15% RH to 93% RH.
Package and maintenance
- Medicine cup maximum capacity: 6 ml; suitable for single-dose administration.
- Unit size and weight facilitate transport and storage: 162 x 140 x 97 mm, 1.34 kg.
- Follow local infection-control procedures: clean/disinfect removable parts after each use and replace consumables as required.
