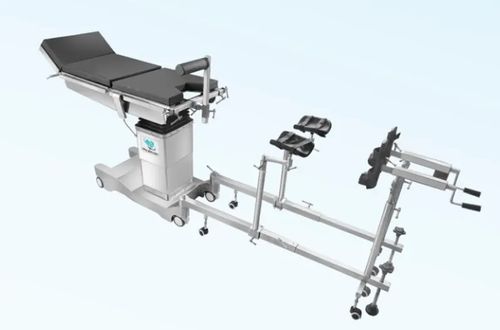

Knee surgery orthopedic extension device

hip surgery

Description
Orthopedic traction attachment enables use of an operating table for lower-extremity procedures. The unit stands independently on the floor and is constructed from corrosion-resistant stainless steel. It is designed for intra-operative X‑ray and image intensifier use and includes adjustable pelvic and leg supports for surgical access and imaging.

Key Specification

• This orthopedic extension device can be used with any operating table as it independently stands on the floor.
• Specially designed for intra‑operative X‑ray imaging and image intensifier use.
• Pelvic support plate is mounted on the frame with an asymmetrical design and includes a front-corner cutout for additional access to the affected leg; removable pelvic rest and X‑ray translucent pelvic stem.
• Stirring instruments allow flexion and elevation of the legs; ball joints lock from the foot end.
• Two traction devices on sliding mounts with ball joints allow flexion and rotation of the foot; traction shoes have metallic soles.
• Padded orthopedic knee crutches provide support for the patient’s legs.
• Traction unit with supporter is collapsible for compact storage.
• The pelvic plate can be flipped to position the cutout on the opposite side depending on the affected leg.

Accessories

• Knee Support - 1
• Traction Boot - 2
• Leg Rest - 2
• Arm Board - 1
• Pelvic Support - 1

Technical specifications

• Material: Stainless steel (corrosion resistant)
• Compatibility: Usable with any operating table; device stands independently on the floor
• Imaging: Designed for intra‑operative X‑ray and image intensifier use; X‑ray translucent pelvic stem
• Pelvic support: Asymmetrical pelvic plate with front-corner cutout; reversible positioning of cutout
• Traction: Two sliding traction devices with ball joints allowing flexion and rotation; traction shoes with metallic soles
• Leg positioning: Stirring instruments for leg flexion/elevation; ball joints lockable from foot end
• Patient support: Padded orthopedic knee crutches
• Storage: Collapsible traction unit requiring minimal space
• Standard accessories included: Knee support, traction boots, leg rests, arm board, pelvic support
