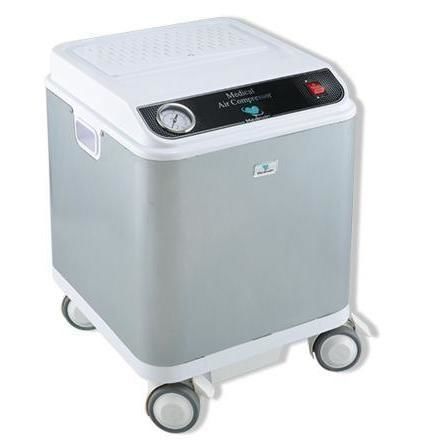

Medical compressor

for ventilatorsportableon casters

Product Overview
Compact oil-free medical air compressor providing a clean, dry air source for ventilators. The unit is fitted with a pressure switch with indicator and an audio-visual alarm. The dehydration-oriented design reduces moisture to meet ventilator requirements.

Features

• Multi-level filtration for particle and condensation removal
• Highly efficient oil-free compressor core for contamination-free air
• Integrated audio-visual alarm (indicator and buzzer) for safety

Stand For Ventilator - Special Features

• Multi-level filtration
• Easy movement
• Compact design
• With ventilator stand trolley
• Double insulation technology to control sound and vibration
• Inbuilt Thomas motor
• Additional fan cooling
• Pressure adjustable (High/Low) with regulator
• High-capacity air storage cylinders
• 4 castor wheels (2 lockable)
• Adopting highly efficient oil-free compressor core
• For safety, the compressor is equipped with audio and visual alarm

Technical Specifications

• Voltage and frequency: 220 VAC ± 50/60 Hz
• Rated flow: 120 L/min at 3.5 bar
• Peak flow at 3 bar: 200 L/min
• Air tank capacity: 2 L
• Air filtration: 5 μm
• Motor: Thomas
• Dew point depression at 40 L/min, 20°C: 5°C below ambient temperature
• Outlet connection: Diss1160-A (3/4"-16 NUF)
• Mode of operation: Continuous
• Automatic back-up to central pipeline: On request
• Noise level: ≤ 49 dB(A)
