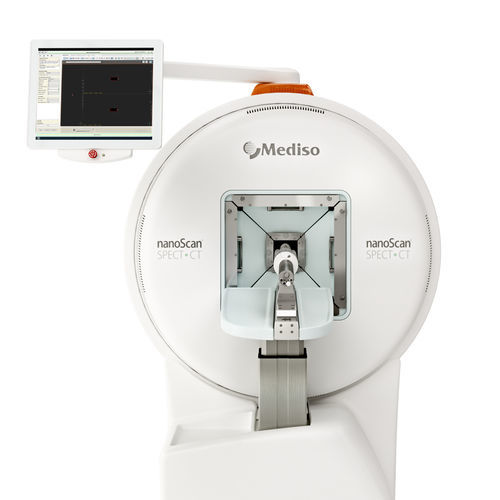

SPECT preclinical tomography system nanoScan®

micro X-ray CTfor small animalsreal-time

The nanoScan® SPECT system images radiotracers with absolute quantification, high sensitivity and high spatial resolution down to 0.3 mm in vivo. Wide range of patented multi-pinhole collimators available with optimized performance for any applications: from whole-body to focused scanning; imaging of mice, multiple mice, large rats and rabbits; from low energy tracers to theranostic isotopes. Best homogeneity on the market is achieved by helical scanning, while fastest 3D dynamic acquisitions are carried out in full stationary mode without gantry or table motion. Features & Benefits High sensitivity and high resolution simultaneously Proprietary and patented multi-pinhole collimator technology offering excellent spatial resolution, high sensitivity and large field of view at the same time Cutting-edge sensitivity even for high-energy isotopes ensured by 9.5 mm thick sodium iodide (NaI:Tl) crystals with large area and minimal detector gaps Exclusive imaging performance with ultra-low activity Absolute quantitative SPECT imaging Tera-Tomo™ 3D SPECT reconstruction: iterative SPECT reconstruction engine based on real-time Monte Carlo simulation Full range of advanced corrections CT- or MRI-based attenuation and scatter correction Excellent homogeneity by helical scanning for comparison of regional uptakes Time-Activity Curve (TAC) generation and calculation of Standardized Uptake Values (SUV) Fast dynamic SPECT with Full Stationary imaging PET-like dynamic imaging capability with list mode data storage Completely motionless acquisition providing time-continuous data from the whole cross-section of the animal
