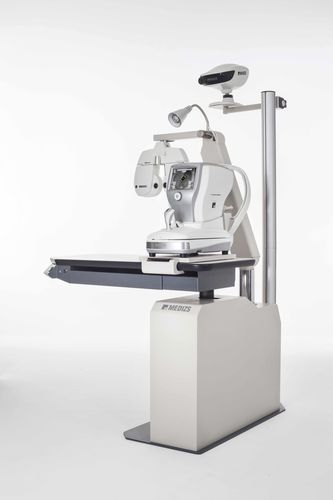

Ophthalmic workstation SMART RT-13

NEW CONTROLLER Operator can be reduced the refraction time to control the device easily by App via Bluetooth wireless network. ADJUSTMENT OF PHOROPTER ARM ANGLE BY BLUETOOTH WIRELESS NETWORK It is more convenient for optometry, because angle can be adjusted to Maximum 34˚ by Bluetooth wireless network Between self-development application and RT 13 button. ERGONOMIC DESIGN Motorized vertical adjustment Maximum 350mm (13.8″) provide convenience for measuring position regardless of patient’s body size. Also, the vertical adjustment can be adjusted by Bluetooth wireless network. CLEAN ENVIRONMENT - Horizontal Sliding Table helps convenient exam even in small room. - Low noise level provides clean refraction environment when handling table. STORAGE SPACE Wide space helps to store trial lens set. Power Supply - AC 220V 50/60Hz Lamp - 25W light bulb Table Rotate Angle - 90˚ Chair Move - 350mm Arm Angle - 34˚ Total Size - 1070(W)X1125(D)X1731(H)mm / 42.1(W)X44.2(D)X68.1(H)inch Table - 1070(W)X490(D)X30(H)mm / 42.1(W)X44.2(D)X1.8(H)inch Moving Table - 285(W)X375(D)X20(H)mm / 11.2(W)X14.7(D)X0.7(H)inch Weight Unit - 170kg / 374lb Chair - 60kg / 132lb
