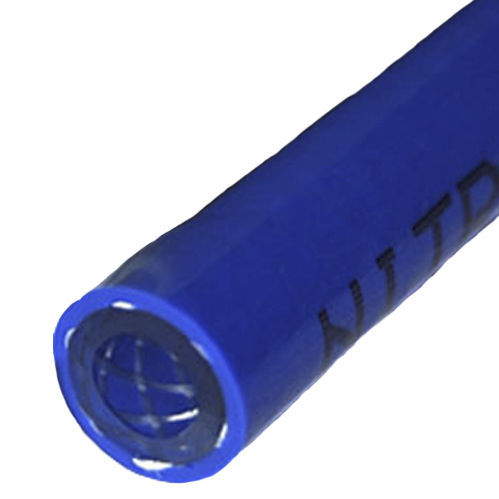

Medical gas tubing 208604PF

PVCstraight

he Blue 6.7mm Phthalate-Free Anti-Microbial ESD PVC Gas Medical Hose (Nitrous Oxide) provides resistance to bacteria such as MRSA and Klebsiella Pneumoniae, in accordance with BS ISO 22196. Features • Contains a low migration plasticiser that meets with the latest chemical toxicity requirements of the European Pharmacopoeia monograph 3.1.2 • SVHC free • Will not expose patients to any potentially harmful phthalate vapours • Does not work-harden • Made from ESD material with a surface resistivity of 1.1E11 ohms/Sq when tested to ASTMD 257 • Manufactured with a wipe down cover containing a slow-release anti-microbial agent that is resistant to many hospital-borne bacteria Specification Colour: Blue Gas Type: Nitrous Oxide Coil Length (m): 30 Material: Non-Phthalate Medical PVC (inner tube and cover) Liner and Cover Resistivity (surface): 9 x 1010 ohm Burst Pressure: 9000 kPa/90 Bar at 23°C Internal Dimensions: Conforms to EN ISO 1307 Layer Adhesion (mean): 2.2 kN/m (EN ISO 8033) Deformation Under Pressure: ≤3% at 1400 kPa (diameter) and ≤1% at 1400 kPa (length) Occlusion Resistance: No flow reduction (BS EN ISO 5359:2008, Clause 5.7) Minimum Life Cycle: 5 years at 23°C and ambient humidity
