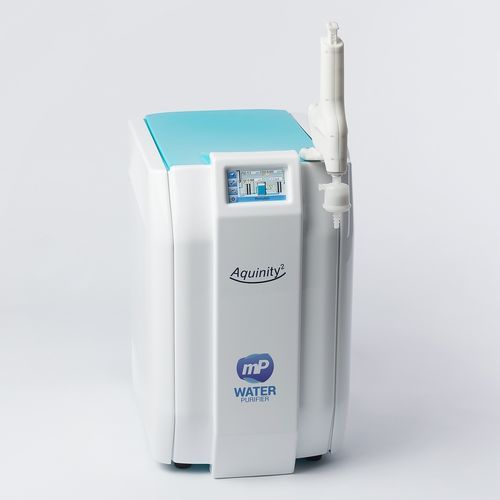

Aquinity² models produce ultra pure water directly from tap water. The Aquinity² P10 ultrapure water system is equipped with a reverse osmosis (RO) module to produce deionised water directly into an integrated 10l tank. In the next step Type I grade water is produced with a polisher cartridge. The Aquinity² water purification system is available in different configurations (Reagent & Analytical) to meet the specific requirements of ultra pure water for different applications. Analytical is a version with UV lamp for low TOC value. Life Science grade water with low endotoxin can be generated with a special final filter. An optional integrated TOC sensor allows the user to monitor the TOC content permanentely online. Besides that the Aquinity² can be configure as bench top or bench-integrated system, where the control panel will mounted on the wall.
Technical Specifications of produced water:
18.2 MOhm x cm | 0.055 µS/cm; Type I
max. 8 L/h
Total Organic Carbon (TOC):
< 10 ppb (Reagent)
< 3 ppb (Analytical)
Advantages of the new systems
• Compact housing
• Big touchscreen
• Remote service module
• Menus and wizards easy to use and mistake avoiding
• New fixed and flexible dispenser
• Easy access for cartridge exchange
Bench integrated configuration (BI version)
To save valuable benchtop space the system can be ordered as BI configuration. The system will be installed underneath the work bench and only the display and dispenser are mounted on the wall.
Wall mounted configuration
To save valuable benchtop space the system can be ordered as wall mounted configuration.
