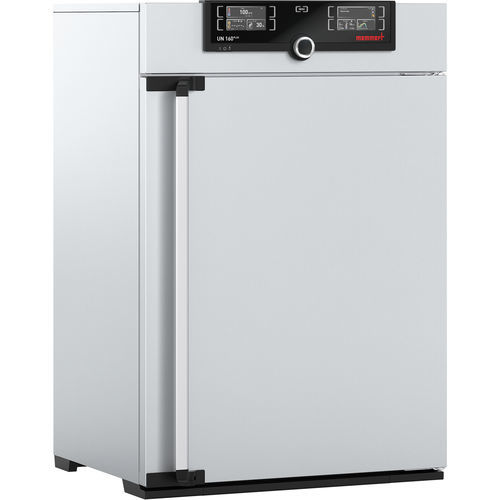

Heating oven UN160mplus
laboratorymedicalnatural convection

heating oven
heating oven
heating oven
Add to favorites
Compare this product


Characteristics

Function
heating
Applications
laboratory, medical
Type
natural convection
Sterilization chamber material
stainless steel
Number of doors
1-door
Temperature range

Min.: 20 °C
(68 °F)

Max.: 300 °C
(572 °F)

Capacity

161 l
(42.53 gal)

Description

The heating oven Um is a Class I medical device. Standard delivery Universal oven Um This universal oven made of high-quality hygienic, easy to clean stainless steel leaves nothing to be desired in terms of ventilation technology, control technology, overtemperature protection and perfectly tuned heating technology. Control technology ControlCOCKPIT: TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays. Language setting: German, English, Spanish, French, Polish, Czech, Hungarian Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days Function HeatBALANCE: adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 % Function SetpointWAIT: the process time does not start until the set temperature is reached Calibration: three freely selectable temperature values adjustable parameters: temperature (Celsius or Fahrenheit), air flap position, programme time, time zones, summertime/wintertime Ventilation Convection: natural convection Fresh air: Admixture of pre-heated fresh air by electronically adjustable air flap Vent: vent connection with restrictor flap Communication Documentation: programme stored in case of power failure Programming: AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port Safety Temperature control: mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
