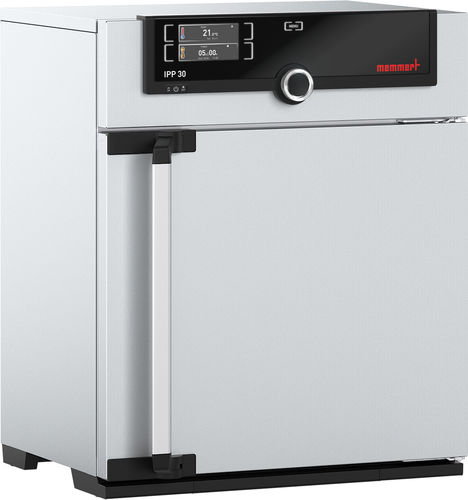

forced convection laboratory incubator / for the pharmaceutical industry / for microbiology / for the food industry
IPP30/plus

{{requestButtons}}

Characteristics

  • Type:

    forced convection

  • Applications:

    for the pharmaceutical industry, for microbiology, for the food industry

  • Configuration:

    benchtop

  • Other characteristics:

    Peltier effect, refrigerated

  • Temperature range:

    Max.: 70 °C (158 °F)

    Min.: 0 °C (32 °F)

  • Capacity:

    32 l (8.5 gal)

Description

Microbiology, zoology, food, cosmetics or pharma industry: the energy-saving cooled incubator with Peltier elements heats up and cools down seamlessly in one system.

Temperature
Setting temperature range 0 to +70 °C
Working temperature range without light: from 0 (at least 20 below ambient temperature) to +70°C
Setting accuracy temperature 0.1 °C
Temperature sensor 1 Pt100 sensor DIN class A in 4-wire-circuit

Standard equipment
Door fully insulated stainless steel door with 2-point locking (compression door lock)
Internals 1 stainless steel grid(s), electropolished
Works calibration certificate for +10°C and +37°C
Door inner glass door

Control technology
Language setting German, English, Spanish, French, Polish, Czech, Hungarian
ControlCOCKPIT SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display
Timer Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
Function SetpointWAIT the process time does not start until the set temperature is reached
Calibration three freely selectable temperature values
adjustable parameters temperature (Celsius or Fahrenheit), programme time, time zones, summertime/wintertime

Stainless steel interior
Dimensions w(A) x h(B) x d(C): 400 x 320 x 250 mm (d less 10 mm for fan - Peltier)
Volume 32 l
Max. number of internals 3
Max. loading of chamber 60 kg
Max. loading per internal 20 kg

Textured stainless steel casing
Dimensions w(D) x h(E) x d(F): 585 x 704 x 506 mm (d +56mm door handle)
Housing rear zinc-plated steel

Ventilation
Convection forced ventilation by Peltier fan

Electrical data
Voltage Electrical load 230 V, 50/60 Hz
approx. 140 W
