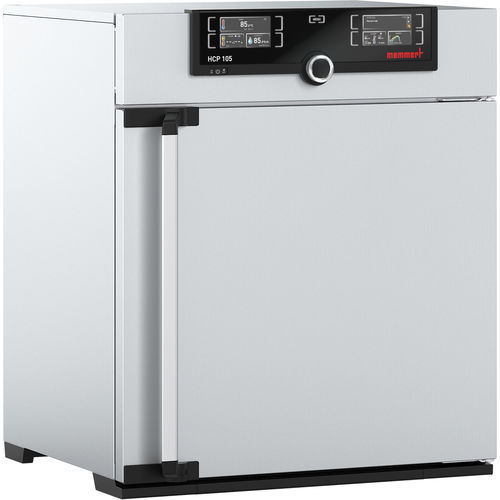

Laboratory test chamber HCP105
humidity1-door

laboratory test chamber
laboratory test chamber
Add to favorites
Compare this product

Characteristics

Applications
laboratory
Tested parameter
humidity
Number of doors
1-door
Temperature range

Min.: 18 °C (64.4 °F)

Max.: 90 °C (194 °F)

Capacity

107 l (28.3 gal)

Description

Active humidity control creates a controlled environment for accelerated life tests and 85/85 tests. Temperature Working-temperature range +7 above ambient temperature up to +90 °C Setting temperature range +18 to +90 °C Setting accuracy temperature 0.1 °C Temperature sensor 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error Standard equipment Works calibration certificate Works calibration certificate (measuring point chamber centre) at 60 °C with 75 % rh Entry port Entry port (silicone), 40 mm clear diameter, for introducing connections, moisture tight, can be closed by silicone stopper, at the back, centre left Door Additional heated inner glass door Door fully insulated stainless steel door with 2-point locking (compression door lock) Internals 2 perforated stainless steel shelf/shelves Humidity Humidity Control Active microprocessor control for humidifying and dehumidifying (20 – 95 % rh), incl. digital indication and auto-diagnostic system ensures even more rapid reaching of set humidity and very short recovery times. Humidity supply with water (only for demineralised water with a conductivity of 5 to 10 μS/cm and a pH value between 5 and 7; from an external tank) by a self-priming pump; integral bacteria block by generating hot steam, dehumidifying via sterile filter Setting range active humidity control 20 to 95 % rh and rh-Off Setting accuracy humidity 0.5 % rh Stainless steel interior Dimensions w(A) x h(B) x d(C): 560 x 480 x 400 mm (d less 35 mm for fan) Interior W.-St. 1.4301 (ASTM 304) Volume 107 l Max. number of internals 6 Max. loading of chamber 90 kg
