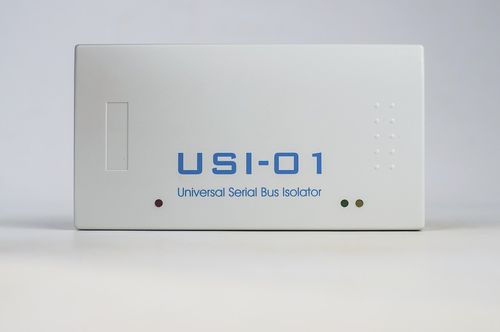

Medical device galvanic isolator USI-01
Add to favorites
Compare this product
Characteristics
- Other characteristics
- for medical devices
Description
galvanic isolation of a USB interface
two different devices for low speed and high speed
Technical details
Transmission - bi-directional (half-duplex, master-slave)
Transmission speed - USI-01L: USB 2.0 with low speed 1,5 Mbit/s
USI-01F: USB 2.0 with full speed 12 Mbit/s
Host connection - USB-B port
Device connection - USB-A port
Power supply - none, optional power supply unit
Connecting cable - 5 m
Test voltage - min. 4kV
Protection class - II
Dimensions - 3.15” x 1.22” x 5.87”
Weight - ca. 300g
Approved according to 93/42/EEC
