Voltammetry analyzer 884 Professional VA

organiccontroltemperature

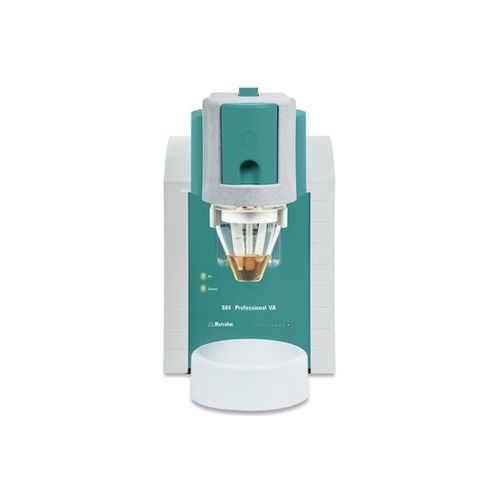

884 Professional VA manual for CVS applications is the entry-level for high-end determinations of organic additives in electroplating baths with "Cyclic Voltammetric Stripping" (CVS), "Cyclic Pulse Voltammetric Stripping" (CPVS), and chronopotentiometry (CP), or voltammetric heavy metal determinations with rotating disk electrodes. The proven Metrohm electrode method combined with a completely new design of potentiostat/galvanostat and the extremely high-performance viva software opens up new perspectives in CVS. The potentiostat with a certified calibrator readjusts itself automatically before each measurement, thus guaranteeing maximum precision. The integrated temperature measurement input allows you to monitor the solution temperature during the measurement. The instrument can also be used to perform voltammetric determinations with the Multi-Mode Electrode or the scTRACE Gold. The replaceable measuring head enables rapid changes between various applications with different electrodes. The viva software is required for control, data acquisition, and evaluation. The 884 Professional VA manual for CVS applications is supplied with extensive accessories and a measuring head for rotating disk electrodes. Electrode set and viva license need to be ordered separately. Tech specs Potentiostat Max. output voltage: ±25 V Max. output current: ±224 mA Sweep potential range: ±5 V Resolution of measured current (in the smallest measuring range): 6 fA Current measuring modes DP ("Differential Pulse") SQW ("Square Wave") CVS ("Cyclic Voltammetric Stripping") CPVS ("Cyclic Pulse Voltammetric Stripping")
