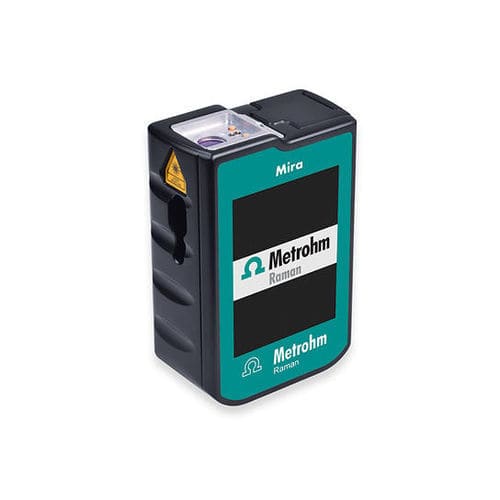

Raman spectrometer Mira P Advanced
for the pharmaceutical industryhand-held

Raman spectrometer
Raman spectrometer
Raman spectrometer
Add to favorites
Compare this product


Characteristics

Type
Raman
Applications
for the pharmaceutical industry
Configuration
hand-held
Wavelength

785 nm

Description

The Metrohm Instant Raman Analyzer (MIRA) P is a high-performance, handheld Raman spectrometer used for rapid, nondestructive determination and verification of different material types, such as Pharmaceutical APIs and excipients. Despite the small size of the instrument, the Mira P has a ruggedized design and features a high-efficiency spectrograph design equipped with our unique Orbital-Raster-Scan (ORS) technology. The Mira P is fully compliant with FDA 21 CFR Part 11 regulations. The Advanced Package includes an attachment lens for analyzing materials directly or through containers (laser class 3b), as well as a vial holder attachment for analyzing samples contained in glass vials (laser class 1). Tech specs Barcode Scanner - true Battery life (h) - ≥ 4h (with recommended batteries) Height (mm) - 45.0 Laser class according to EN 60825-1 - Mira P Advanced Class 3B Laser output power (mW) - ≤ 100 Laser Wavelength (nm) - 785.0 Length (mm) - 128.0 Resolution (cm⁻¹) (FWHM) - 8-10 Spectral Range (cm⁻¹) - 400-2300 Touchscreen Display - 3.7" Resistive Weight (grams) - 752.0 Width (mm) - 88.0

VIDEO

Catalogs

No catalogs are available for this product.

See all of Metrohm‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
