Automated sample processor MGISTP-7000

filtrationfloor-standinghigh-throughput

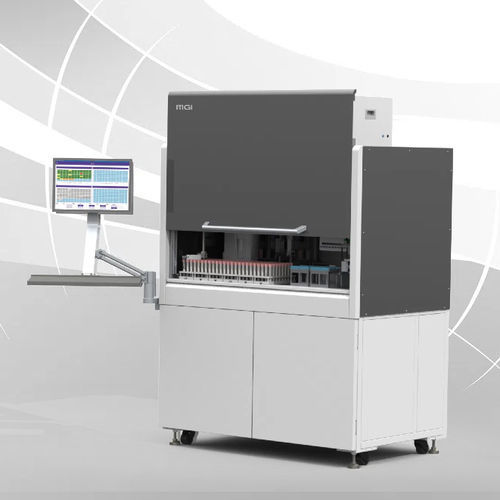

MGISTP-7000 is our high-throughput automated sample transfer processing system. It integrates tube decapping, tube recapping, barcode identification, automated liquid transfer, and negative pressure protection. It can transfer 192 samples from airtight sample tubes or plain tubes to 96-Well Microplates in 40 min, greatly improving nucleic acid detection capability Automated: load airtight sample tubes into a standard rack. Just a single-click, it will finish the tedious sample pre-analytical steps for you. Powerful: designed for laboratories that require high productivity. Transfer 192 samples from screw cap transport tubes to 96-Well Microplates in 40 minutes. Safe: two HEPA-filtration and one UV light ensure a safer working environment for both liquid transfer and lab technicians. High Reliability: barcode information can be automatically stored and transferred to ZLIMS system, providing information traceability. Power & Dimensions & Net Weight Power Type: 100~240V, 50/60Hz Rated Power: 1000VA Dimensions: length:1470mm; width 960mm; height: 2100mm Net Weight: about 500kg Operating Environment Requirements Temperature: 19℃~25℃ Relative Humidity: 20%RH~80%RH, non-condensing Atmospheric Pressure: 80kPa~106kPa
