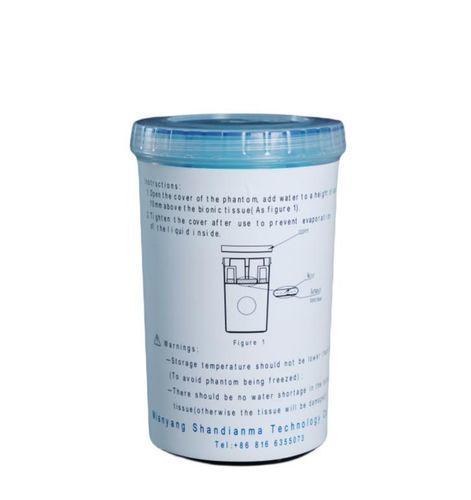

Ultrasound imaging test phantom BV160

bladder

A simulation tool for bladder scanner verification, training, and quality assurance
The Training Phantom BV160 is a bladder simulation model designed to mimic the acoustic and physical properties of human tissue. It provides a safe, repeatable, and patient-free environment for bladder scanner verification, training, and accuracy evaluation.

Intended Use
The Training Phantom BV160 is intended for use with bladder scanners for:
- Measurement accuracy verification
- Product demonstration and user training
- Quality assurance and troubleshooting in controlled conditions
It is suitable for use by distributors, service personnel, and trained users of bladder scanning systems.

Typical Use Scenarios
- Factory calibration and quality assurance
Verification of bladder scanner measurement accuracy during production testing
- Customer support and troubleshooting
Confirmation of device performance when investigating reported measurement deviations
- Product demonstration and training
Hands-on training and demonstration to improve user confidence and scanning technique

Key Value
- Provides a patient-free environment for repeatable testing
- Supports consistent verification of bladder scanner measurement performance
- Enables training and demonstration without clinical risk
- Designed for long-term, routine use in technical and service settings

Key Features
- Fixed-volume simulated bladder
Spherical simulated bladder with a nominal volume of 160 mL for consistent reference measurements
- Tissue-mimicking material
Acoustic properties designed to simulate human tissue for realistic ultrasound interaction
- High reference accuracy
Nominal volume accuracy of ±1 mL, supporting precise verification and comparison
- Central probe positioning support
Central probe holder helps ensure correct probe alignment during testing
- Removable top cover and robust outer shell
Designed for easy setup, inspection, and repeated use

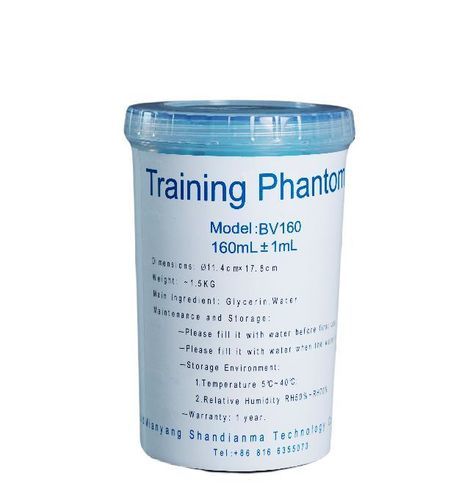

Reference Specifications
- Nominal bladder volume: 160 mL
- Volume accuracy: ±1 mL
- Dimensions: Ø12 cm × 18 cm
- Weight: Approx. 1.5 kg
- Main components: Water, glycerol
