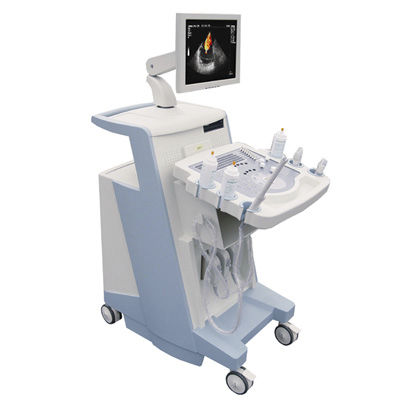

On-platform ultrasound system 9900

for multipurpose ultrasound imagingB/Wcolor doppler

Trolley type 9900 digital color Doppler diagnostic by the host, monitor the probe. The new platform will bring you more convenient operation experience: patient management system will reduce operating time; more open pre-settings can be customized personalized interface features. Control panel fully take into account the user's operating habits, coupled with a variety of imaging modes and parameter adjustment, a powerful new platform will greatly improve the efficiency of your check. ● the dexterity patient file management: any time can easily retrieve patient images and reports; ● complete DICOM3.0 system: storage, MPPS, print, job listings; ● complete data solutions: large-capacity hard disk, USB, VGA, S-Video, DVD, network port, ...; Flexible customization features: keyboard shortcuts, menu, body standard, measurement, report notes, ...; Function and main technical parameters Scanning mode: convex array / HF / cavity / phased array / 4D. Scanning depth: 248mm. Grayscale: 256. Resolution: horizontal 1mm, longitudinal l mm. Image magnification: continuously adjustable. Contrast: 1200: 1. Viewing Angle: 88/88/88/88. Video output: PAL-D VGA. Display mode: B, B / B, B / M, M, color Doppler energy Doppler, spectral Doppler, continuous Doppler. The clinical application of abdominal muscles, bones, gynecology, obstetrics, surgery and interventional ultrasound neonatal, pediatric, cardiac, vascular prostate, urinary, transcranial small organs, orthopedic
