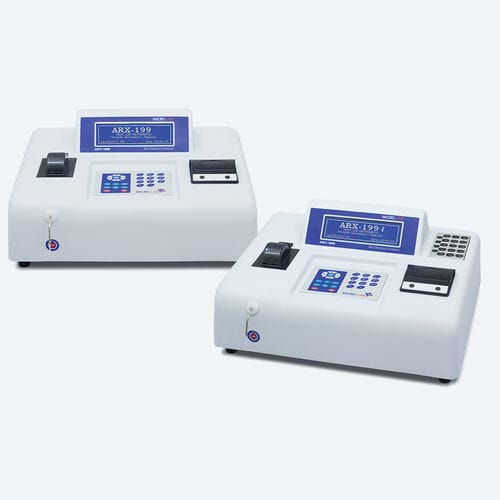

Automatic biochemistry analyzer ARX-199

benchtop

User friendly software Editing of patient ID, Name (12 characters), Factor Print out of laboratory name & Doctor's name. For Kinetic test : On line Graph & OD. Graph editing facility. Estimation of result. Universal input voltage 90 to 265 V/50 - 60 Hz. Storage of 2000 test results in the memory with patient ID. PS2 Keyboard connection optional. Lamp Saver mode. METHODS OF ASSAY ABS EP with Factor KIN Fixed time Differential Multipoint upto 10 standards Technical Specification OPTICAL SYSTEM Principle - Absorption spectrometry Range of measurement - From -0.1 to 3.0A Normal Spectral range - Automatic via filter wheel Filters - 340, 405, 505, 546, 578, 630, 670 nm. 1 extra position Bandwidth - 10nm (±2 nm) Reading error - 2% at 2.5 A Light source - Halogen lamp Zero - Automatic Settings - Monochromatic & Bichromatic readings. Detector - Schottkey type photodiode - Silicon THERMOSTAT SYSTEM Peltier regulated - 25°, 30° & 37°C Programmed Accuracy - 0.2°C CUVETTES - DUAL MODE Removable cuvettes - Macro, Semi-micro & Micro PRINTER Type - Fast Thermal Graphic Printing speed - 50 mm/sec Dots per line - 384 dots/line Paper - Thermo sensitive, 57 mm wide SCREEN AND KEYBOARD LCD blue LED back lit - 240 x 64 pixels. Keyboard - Tactile Soft-touch ASPIRATION SYSTEM Continuous flow system with Bi-directional peristaltic pump INCUBATOR 37°C for 9 Position Test Tubes & 9 Position Cuvettes PROGRAMMING Table of units - up to 9 units Quality control storage of the last 30 results Memory - 128 KB EEPROM QUALITY CONTROL 2 Controls per test - Normal & Abnormal
