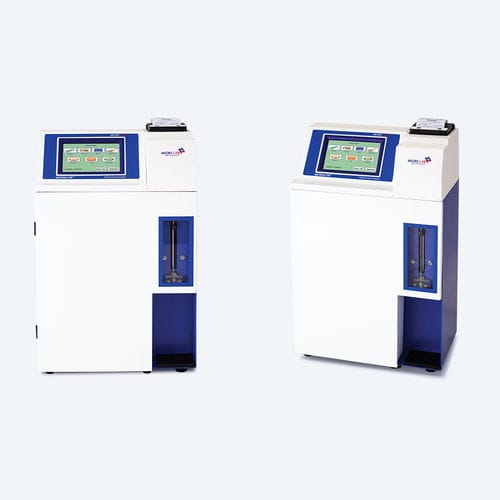

Automatic electrolyte analyzer Microlyte

K+Na+Cl-

User friendly icon based operation integrated with advanced microprocesor Calibration cycle: Automatic of programmable: 2hrs / 4 hrs / 6 hrs, standby mode Liquid stable reagents - RFID reagent management inbuilt Maintenance free ION SELECTIVE ELECTRODES Universal input voltage 95 to 265 V / 50-60 Hz Easy access for electrode assembly Automatic flagging for low/normal/high results with color code. Technical Specification SAMPLE TYPE Whole Blood / Serum / Plasma / Urine Samples / CSF SAMPLE VOLUME 120ul Whole Blood, Serum, Plasma 160ul Capillary sample 400ul Diluted (1:4) Urine Sample SAMPLE ANALYSIS 60 Seconds of Whole Blood, Serum, Plasma / CSF 120 Seconds of Urine Sample DATA OUTPUT Ethernet / USB PRINTER Thermal Graphic paper 57mm wide Easy paper loading SCREEN AND KEYBOARD Color - Touch Screen 5" : 800 x 478 UNITS mmol/L or meq/L DATA STORAGE 1000 test results Memory: SD card - 8 to 32 GB QUALITY CONTROL 3 Controls per test - Low, Normal & High Levy - Jennings charts Quality control storage of the last 30 results POWER / DIMENSIONS Voltage - 110-220 V Frequency - 50 - 60 Hz Maximum power - <40W Temperature - 10° to 35° C Maximum relative humidity - 80% Dimensions - 12x12x16 cms Weight - 8 Kgs
