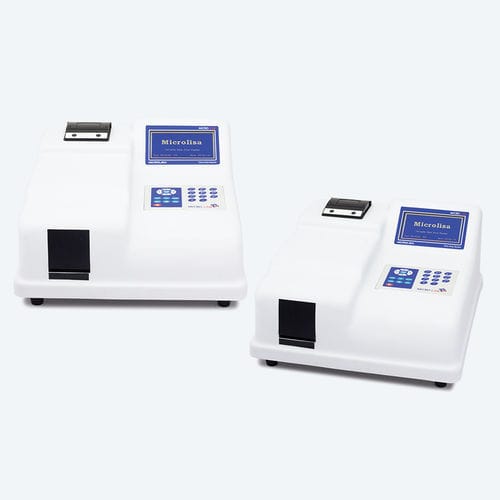

ELISA test strip reader MICROLISA

LED

User friendly software Cut-off and Multi standard Method Storage of cutoff factor & curve in memory Universal input voltage 95 to 265 V/50 - 60 Hz Storage of 1000 test results in the memory with patient ID. LED Lamp Print out - storage of multi-standard curve. METHODS OF ASSAY Cut-off/Abs-OD Multipoint upto 10 standards Technical Specification OPTICAL SYSTEM Principle - Absorption spectrometry Range of measurement - From -0.1 to 3.4A Normal Spectral range - Automatic via filter wheel Filters - 405, 450, 492, 630 nm. 4 extra position Bandwidth - 10nm (±2 nm) Reading error - 2% at 2.5 A Light source - LED Zero - Automatic Settings - Monochromatic & Bichromatic readings. Detector - Schottkey type photodiode - Silicon STRIP TYPE Single strip of 8 wells at a time PRINTER Type - Fast Thermal Graphic Printing speed - 50 mm/sec Dots per line - 384 dots/line Paper - Thermo sensitive, 57 mm wide Easy paper loading DATA OUTPUT Connection Type - RS-232: p pin D type connector SCREEN AND KEYBOARD LCD blue LED back lit - 240 x 64 pixels. Keyboard - Tactile Soft-touch PROGRAMMING Table of tests - up to 200 Table of units - up to 9 units Quality control storage of the last 30 results Memory - 128 KB EEPROM QUALITY CONTROL 2 Controls per test - Normal & Abnormal Quality control storage of the last 30 results Levy - Jennings Charts POWER / DIMENSIONS Voltage - 110-220 V Frequency - 50 - 60 Hz Maximum power - <60W Temperature - 10° to 42° C Maximum relative humidity - 80% Dimensions - 44 x 38 x 21 cms Weight - 6 kgs
