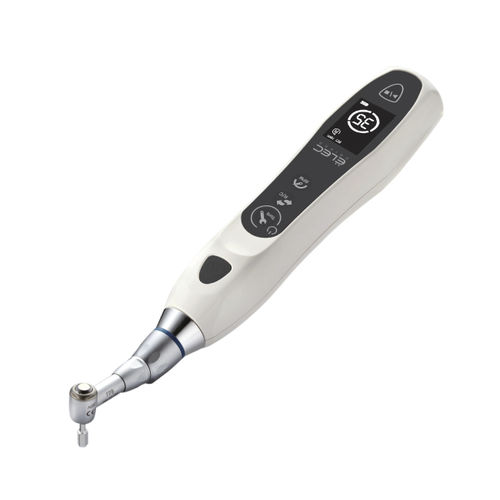

Torque dental driver ELEC DRIVER

for dental implantsfor handpieces

ㆍ Accurate tightening torque minimizes fracture / loosing. ㆍContra angle structure allow easy access to posterior parts. ㆍ Abutment and orthodontic fixtures can be directly buried and shorten procedure time. Easily use when orthodontic mini screw inserted! ㆍ5 ~ 35 Ncm for placement / removal even from hard bone. ㆍTorque setting function minimizes calibration screw fracture / fall. Accurate and quick setup · Controllable torque & speed: Torque Value: 5 / 10 / 15 / 20 / 25 / 30 / 35 (5 Ncm step) RPM Value: 15 / 30 / 45 / 60 (15rpm step) ·State-of-art TCS ( Torque calibration system ) mininizes torque value errors between motor handpiece and contra-angle Battery type Li-Polymer Battery capacity 7.4V DC / 360 mAh Speed range 15.30.45.60rpm ±10% Torque stages 5.10.15.20.25.30.35 N.cm ±10% Dimension 30mm(W) x 28mm(L) x 200mm(H) Weight 150g CHARGING CRADLE Model EH-CS12 Input 12VDC/0.5A Output 8.4V DC / 360 mAh Charging time Approx. 90min Dimension 105mm(W) x 111mm(L) x 51mm(H) Weight 80g ADAPTOR Input 100 ~ 240 VAC. 0.3A Output 12VDC/0.5A CHARGING CRADLE Scerw driver Shank 02.35mm. IS01797-1 Typel Chuck type Push button chuck Weight 50g
