UV-vis spectrophotometer Nabi
microvolumexenonminiature

UV-vis spectrophotometer
UV-vis spectrophotometer
UV-vis spectrophotometer
UV-vis spectrophotometer
UV-vis spectrophotometer
UV-vis spectrophotometer
UV-vis spectrophotometer
UV-vis spectrophotometer
Add to favorites
Compare this product


Characteristics

Type
UV-vis
Technology
microvolume
Source
xenon
Configuration
miniature
Other characteristics
with USB port, with touchscreen
Wavelength

Min.: 190 nm

Max.: 1,100 nm

Length

220 mm (8.7 in)

Width

280 mm (11 in)

Height

220 mm (8.7 in)

Weight

5 kg (11 lb)

Description

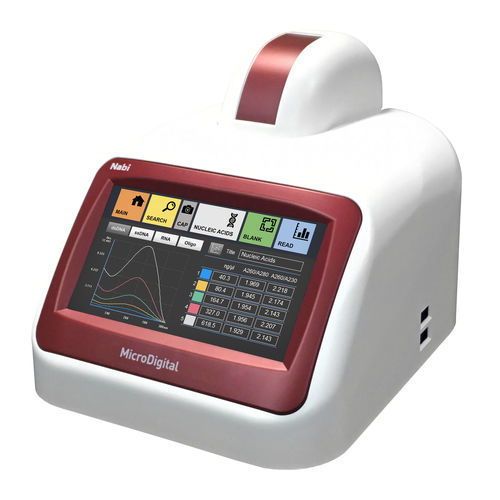

Nabi is a miniature spectrophotometer that can measure cuvette and microvolume samples. Using the spectrometer technology, it can accurately and efficiently measure/analyze single wavelengths as well as spectrums. Nabi is a standalone system with 7.0” LCD touch screen, and data backup can be done simply by connecting a USB. [Key Features] ▶ Small and portable size ▶ Easy maneuver/operation with 7” LCD screen (Stand-alone) ▶ Easy back up with a USB Flash drive ▶ Parameters: NA/RNA, Protein, Cell, End point, Kinetic, Spectrum [General Specifications] *Light Source - Xenon Flash Lamp *Detector - CCD (2,048 Pixels), (reference beam available) *Spectral Resolution - 0.3 nm [Nano-Volume Specifications] *Absorbance Precision - 1% at 100 ng/µl *Absorbance Range - 0 – 300 Abs. (10 nm equivalent) *Detection Limit - 2 ng/µl (dsDNA) *Maximum Concentration - 15,000 ng/µl (dsDNA) *Measurement Time - 5 sec *Minimum Sample Size - 1 µl *Path Length - 0.01 – 1.2 mm (Auto-ranging) [Cuvette Specifications] *Beam Height - 8.5 mm *Absorbance Range - 0.002 – 2.0 Abs. *Measurement Time - 3 sec

VIDEO
