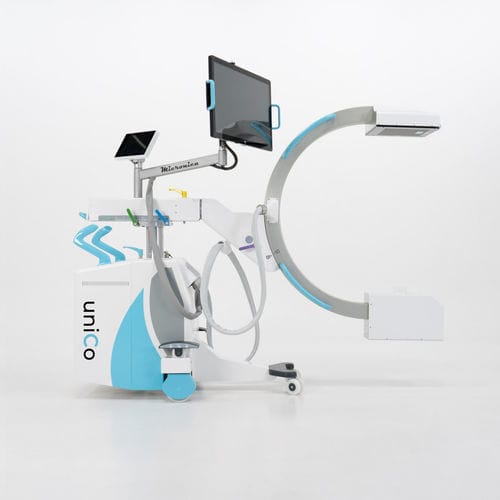

Mobile C-arm Unico

with flat panel detectorrotating anode

Overview
Unico is a compact all-in-one mobile C‑Arm designed for multidisciplinary clinical applications. It features an all-in-one compact design, a 10 kW HV generator and an intuitive full-touch screen user interface. The system automatically adjusts X-ray parameters (kV, mA, pulse width) to optimize image quality at minimum dose and to streamline clinical workflow.

Key features — Plug & Play

• Fast startup; ready to use with no additional settings
• Proprietary image-detection software recognizes anatomy and selects optimal X-ray settings while minimizing patient and operator dose
• Intuitive full-touch user interface on console and live monitor for streamlined workflow

Designed Around You

• Articulated monitor support for flexible positioning in surgical settings
• Wheel brakes unlockable from both sides for operational convenience
• Ergonomic steering handles with thumb cut-out
• Cable pushers on each wheel to prevent entanglement with wires and obstacles

Customized Mechanical Design
Vertical excursion: 450 mm; Longitudinal sledge excursion: 225 mm. C‑Arm free space: 912 mm; Depth: 71.6 cm. The balance and dimensions permit close approach to the patient without overcrowding the sterile area.

Applications

• Orthopedics
• General surgery
• Pain management
• Neurosurgery
• General fluoroscopic applications

Specifications

• X-Ray source: 10 kW HV generator + housing
• Anode type: rotating anode, 3000 rpm
• Flat panel detector options: IGZO, CMOS, aSi (multiple sizes)
• X-ray modes: pulsed fluoroscopy and digital cinematography
• Vertical excursion: 450 mm
• Longitudinal sledge excursion: 225 mm
• Free space (C-Arm): 912 mm
• Depth: 71.6 cm
• Full touch-screen user interface on console and monitor
• Automatic anatomy recognition and automatic X-ray parameter selection (kV, mA, pulse width)
