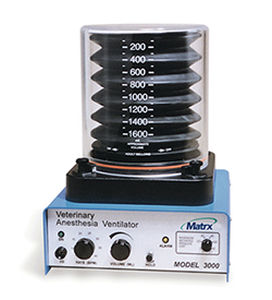

Anesthesia ventilator Model 3000

veterinaryelectro-pneumatic

Overview An electronically controlled, time-cycled, pressure-limited ventilator, the Matrx™ Model 3000 replaces the breathing bag, providing smooth, even delivery of anesthesia. Designed specifically for veterinary practice, the anasthesia ventilator Model 3000 assures a constant volume for each delivered breath, regardless of patient compliance and airway resistance. Easy-to-use controls make operation simple and convenient. Replaces the breathing bag, freeing technician to assist in other procedures Precise control of anesthetic state allows lower levels of anesthesia for more responsive patients, more economical operation, with blood CO2 and pH levels closer to normal Interchangeable bellows adapt to animals from 1 kg to 300 kg – no tools required Maximum working pressure limit (MWPL) adjustable from 10-60 cm H2O Dual airway pressure alarms signal any breath exceeding preset maximum or minimum Optional low supply gas alarm signals supply gas pressure below 35 psi Respiratory rates from 6-40 breaths per minute at inspiratory flow rates from 0-100 lpm Tidal volumes from 20 -3,000 cc Built-in scavenging port
