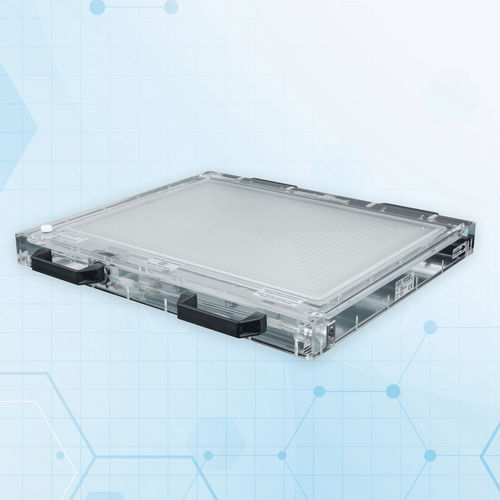

PET and SPECT test phantom

general purpose

For quality assurance of camera homogeneity. Complete mixing of the filling phantom is achieved by an integrated circulation pump. The design principle enables a bubble-free field of view. The composite construction prevents deformation of the measuring surfaces. Specifications eff. Field of view : 400 mm x 540 mm G flat. Field of view : 440 mm x 580 mm Dimension of the cuvette : 545 mm x 630 mm x 80 mm Dimensions with mounting parts : 635 mm x 630 mm x 90 mm filling quantity : approx. 12 litres Empty weight : approx. 21 kg Material in measuring range : 20 mm acrylic glass / glass filling medium : distilled water Operating temperature : 15 °C – 25 °C
