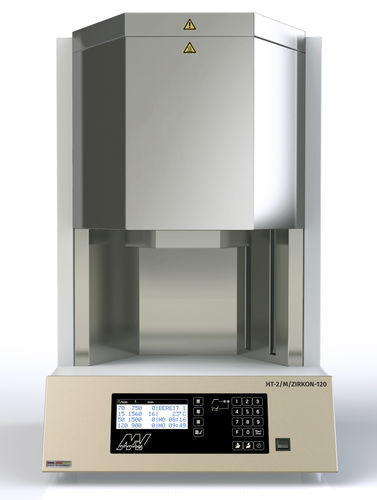

Sintering furnace HT-2/M/ZIRKON-120
heatingfor dental laboratorieszirconia

sintering furnace
sintering furnace
sintering furnace
sintering furnace
Add to favorites
Compare this product


Characteristics

Function
sintering, heating
Applications
for dental laboratories
Designed for
zirconia
Other characteristics
high-temperature
Temperature range

Min.: 0 °C (32 °F)

Max.: 1,650 °C (3,002 °F)

Description

THE HT SERIES HT-2 - even more efficient due to a larger capacity Due to the size of the heating chamber, it is now possible to process three sintering trays Ø= 120mm during the conventional long-term sintering. However, the heating system with six high-quality molybdenum disilicide heating elements (MoSi2) enable you to carry out processes within 76 minutes in a SPEED-sintering process. These represent optimal prerequisites for your dental laboratory or milling centre. As with all our model variants, the HT-2 is operated with a simple, self-explanatory program control. 4-line LCD-display, timer function for overnight sintering, drying programs for wet-milled restorations. There are three service programs for servicing the heating chamber and the heating system. 90 SINGLE CROWNS OR SINTERING DISC High purity molybdenum-disilicide heating elements PRO Max. temperature 1650°C Heating-chamber capacity 3x Ø 120/30 mm Program control (LCD-display, 4 stages, 30 program capacity) Service programs A - Temperature control* only in conjunction with test-kit C-Purge heating chamber E- Regenerate heating elements Thermocouple PtRh-Pt, type S Temperature accuracy at 1500°C +/-3°C Timer function Technical informationHT-2/M/ZIRKON-120 Power max.3800 W Voltage range / frequency200-240 V / 50-60 Hz Weight74 kg Dimensions W/D/H500/560/820 mm Process capability Max. temperature Heating elements Number of heating elements6 Heating-chamber height102 mm Max. heating-chamber capacity 120/30 mm
