laboratory vacuum system / rotary vane / lubricated
CRYOLIS 1/2

Add to MyMedicalExpo favorites
Compare this product
laboratory vacuum system / rotary vane / lubricated laboratory vacuum system / rotary vane / lubricated - CRYOLIS 1/2
{{requestButtons}}

Characteristics

  • Applications:

    laboratory

  • Technology:

    rotary vane

  • Other characteristics:

    lubricated

  • Flow:

    Min.: 44 m³/h (1,553.85 ft³/h)

    Max.: 120 m³/h (4,237.76 ft³/h)

  • Power:

    Min.: 1.1 kW (1.5 hp)

    Max.: 2.64 kW (3.59 hp)

Description

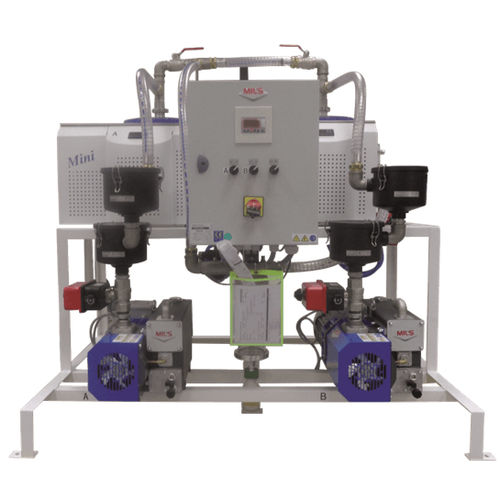

CRYOLIS vacuum systems are designed for laboratories application such as distillation. They can be equipped up to two EVISA lubricated rotary vane pumps with protection with -60°C or -110°C cryogenic condenser. The condenser allows an effective protection of vacuum pumps with a high performance of ultimate vacuum level.
