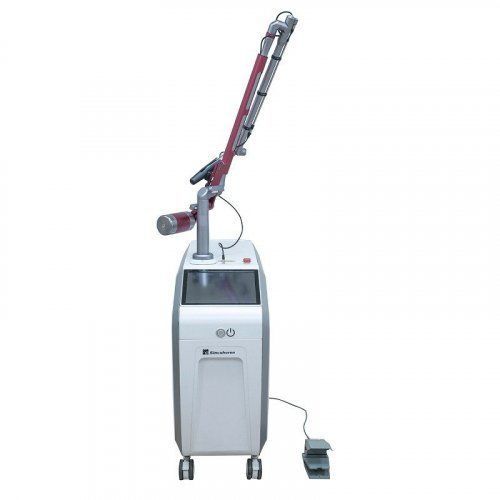

Skin rejuvenation laser Q-Switched

tattoo removalNd:YAGnanosecond

Product overview
Q‑Switched Nd:YAG system for clinical tattoo removal, carbon peeling and removal of permanent makeup. Designed for selective photothermolysis of pigment with adjustable spot size and short pulse duration.

Certifications
FDA, CE and ISO certified device suitable for clinical and aesthetic practices.

Introduction — treatment principle
The system operates on selective photothermolysis: high‑peak, nanosecond pulses target melanin and tattoo pigments to fragment them into microparticles while preserving surrounding tissue. Fragmented pigments are cleared via the lymphatic and circulatory systems.

Clinical indications

• Removal of decorative and multicolor tattoos (red, blue, black, brown).
• Correction/removal of permanent makeup (eyebrow, eyeliner, lip liner).
• Carbon peeling and superficial skin rejuvenation.
• Reduction of freckles, lentigines, sun spots and age spots.
• Treatment of certain vascular lesions and superficial birthmarks (case dependent).

Key features

• Flat‑top beam profile for uniform energy distribution.
• 10.4‑inch touch display and 7‑joint articulated arm for precise positioning.
• Real‑time energy monitoring and auto‑calibration system.
• Automatic energy density adjustment according to spot size.
• Short pulse duration: 5 ns for effective pigment fragmentation.
• Adjustable spot size: 2–10 mm.
• Stable power supply with high peak power output.
• Integrated water filtration/cooling system.

Before and after / images
Clinical before/after images and illustrative case studies available on the product page. Refer to those materials for expected outcomes and treatment parameters.

Technical specifications

• Laser type: High‑energy Q‑Switched Nd:YAG
• Wavelengths: 1064 nm / 532 nm
• Pulse width: 5 ns
• Pulse energy: 1000 mJ / 500 mJ
• Pulse energy range: 100–1000 mJ (1064 nm) / 100–500 mJ (532 nm)
• Frequency: 5 Hz
• Spot size: 2–10 mm adjustable
• Fluence: 1.3–32 J/cm² (1064 nm) / 0.6–16 J/cm² (532 nm)
