Mechanical microneedling unit Ultima PRO

hand-held

Product overview

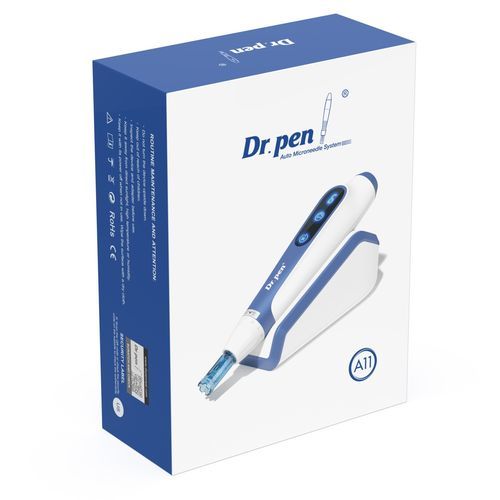

The Dr Pen Ultima PRO (A11) is a professional handheld microneedling device with an adjustable needle depth of 0–2.5 mm, six speed settings and a large LED display. It supports wireless and wired use and is designed for aesthetic clinics and at-home professional treatments.

Key features & benefits

• Large LED display: shows speed, battery level and needle depth for precise control.
• 6 adjustable speeds: adaptable to different treatment areas and skin conditions.
• Adjustable needle depth 0–2.5 mm: suitable for superficial to deeper treatments.
• Advanced cartridges: 0.18 mm ultra-fine needles with wave contact surface to improve product absorption and minimize discomfort.
• Dual power modes: wireless operation (approx. 3–4 h battery life) or wired for continuous use.

Enhanced safety

• 3-lock cartridge connector and anti-backflow membrane to reduce contamination risk.
• Smart anti-slip ergonomic body and inductive base that starts/stops when the pen is placed on it.

Common clinical and aesthetic uses

• Reduction of fine lines and wrinkles; improvement of sun-damaged skin texture.
• Treatment of acne and surgical scars.
• Improvement of overall skin tone and product penetration.
• Scalp stimulation protocols for hair loss treatment.

Components typically included

• Pen device (Ultima PRO / A11).
• Intelligent inductive base (auto on/off), charger and power cable.
• Multiple needle cartridges (common options: 12, 18, 24, 36, 42 pins; Nano-S / Nano-R types).

Service & guarantees

• China factory price and duty-free delivery options.
• German after-sales service and European local engineers available.
• Free training with certificate upon request.
• Standard 2-year warranty and lifetime technical support options.

Technical specifications

• Model family: Ultima PRO (A11 reference).
• Needle depth: adjustable 0–2.5 mm.
• Needle diameter: 0.18 mm ultra-fine needles; wave contact surface.
• Cartridge connector: 3-lock system with anti-backflow membrane.
• Speed settings: 6 digital levels.
• Display: large LED/digital screen (speed, battery, depth).
• Power: dual mode — wireless battery (approx. 3–4 h) or wired operation.
• Motor: high-speed motor for effective collagen stimulation.
• Typical cartridge options: 12 / 18 / 24 / 36 / 42 pins; Nano-S / Nano-R variants.
