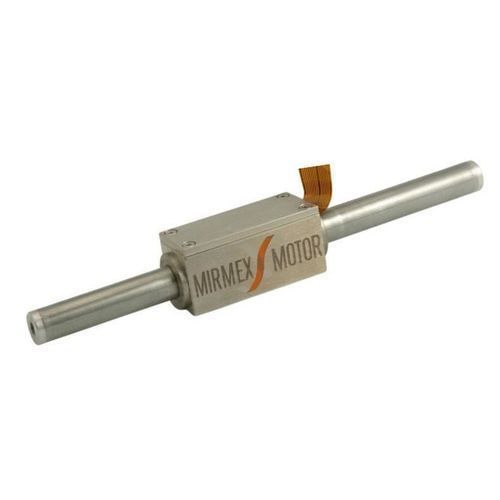

Laboratory automation motor Three-phase

brushlessACwith integrated motion controller

Product overview
Three-phase linear motor designed for precision motion in industrial automation and robotics. Brushless, ironless permanent-magnet construction minimizes cogging and delivers smooth, repeatable positioning across a wide speed and force range. Configurable in flat, small and tubular formats to fit space-constrained systems.

Key features

• Brushless operation for reduced maintenance and long service life
• Coreless (ironless) design eliminating cogging for ultra-smooth motion
• Permanent magnet technology for consistent force and fast response
• Available in flat, compact and tubular configurations for OEM integration
• Suitable for automation, robotics, high-speed positioning and precision assembly

Characteristics (summary)

• AC/DC: three-phase
• Type: brushless; ironless; iron-core options
• Voltage options: 48 V; 24 V; 12 V; 0–60 V

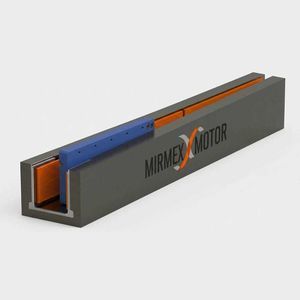

• Configurations: flat; small; tubular
• Performance: high-speed; high-precision; low-noise; high-torque
• Control: electronic control integrated or available
• Low-voltage operation supported

Technical specifications

• Speed range: 0.88 mm/s (min) to 2.7 mm/s (max)
• Force range: 103 N (min) to 478 N (max)
• Power range: 0 kW (0 hp) to 1 kW (1.36 hp)
• Stroke range: 0.8 mm (0.031 in) to 2.7 mm (0.106 in)
