Medical equipment motor Frameless motor
brushlessDC

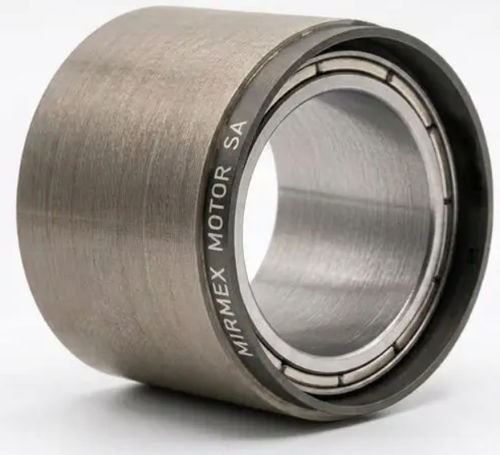

Medical equipment motor - Frameless motor - Mirmex Micro Motor S.A. - brushless / DC

Add to favorites

Compare this product

Go to the Mirmex Micro Motor S.A. website for more information

Characteristics

Applications

for medical equipment

Operational mode

brushless

Current type

Power

Min.: 0 kW
(0 hp)

Max.: 1 kW
(1.36 hp)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 120,000 rpm
(753,982.2369 rad.min-1)

Diameter

Min.: 1.5 mm
(0.06 in)

Max.: 85 mm
(3.35 in)

Torque

Min.: 0 Nm
(0 ft.lb)

Max.: 1 Nm
(0.7376 ft.lb)

Description

Characteristics

Type: DC, 3-phase, brushless
Configuration: frameless, compact
Number of poles: multipole
Applications: medical equipment; robotics; collaborative robots; conveyor belts; packaging machines; compressors; air heaters
Other characteristics: low-voltage; custom; high-efficiency; high-torque; low-noise; high-power; micro generator; microturbine motor; micro motor; low cogging; motor coil; for stator; radial flux
Power: Min.: 0 W (0 hp) / Max.: 1,000 W (1.36 hp)
Torque: Min.: 0 Nm (0 ft.lb) / Max.: 1 Nm (0.737562 ft.lb)
Rotational speed: Min.: 0 rpm (0 rad.min-1) / Max.: 120,000 rpm (753,982.2369 rad.min-1)
Diameter: Min.: 1.5 mm (0.06 in) / Max.: 85 mm (3.35 in)
Operating temperature: Min.: -40 °C (-40 °F) / Max.: 100 °C (212 °F)

Description
At Mirmex we offer production flexibility to match your assembly and integration needs. The frameless motor is supplied as separate rotor and stator units without bearings or housing, allowing customers to choose between a fully assembled motor or component-level delivery for in-house integration. Each component is validated independently and intended for final assembly within the customer's mechanical housing, enabling precise control of bearing, sealing and thermal integration.

Technical specifications

Type: DC, 3-phase, brushless
Configuration: frameless, compact
Number of poles: multipole
Applications: medical equipment; robotics; collaborative robots; conveyor belts; packaging machines; compressors; air heaters
Other characteristics: low-voltage; custom; high-efficiency; high-torque; low-noise; high-power; micro generator; microturbine motor; micro motor; low cogging; motor coil; for stator; radial flux
Power: Min.: 0 W (0 hp)
Max.: 1,000 W (1.36 hp)
Torque: Min.: 0 Nm (0 ft.lb)
Max.: 1 Nm (0.737562 ft.lb)
Rotational speed: Min.: 0 rpm (0 rad.min-1)
Max.: 120,000 rpm (753,982.2369 rad.min-1)
Diameter: Min.: 1.5 mm (0.06 in)
Max.: 85 mm (3.35 in)
Operating temperature: Min.: -40 °C (-40 °F)
Max.: 100 °C (212 °F)
