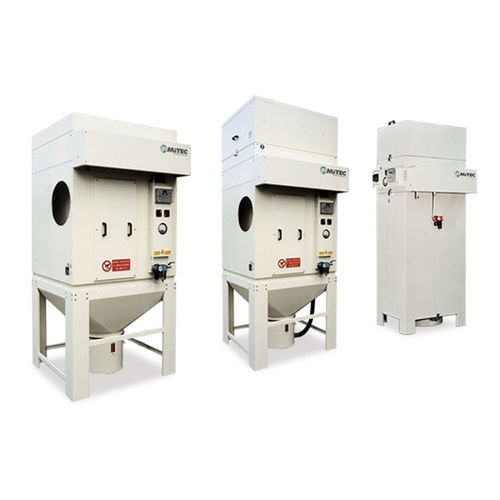

Cartridge filtration unit KOMBIMAT
airdustfor the pharmaceutical industry

cartridge filtration unit
cartridge filtration unit
cartridge filtration unit
Add to favorites
Compare this product


Characteristics

Filter type
cartridge
Fluid
air, dust
Applications
for the pharmaceutical industry
Connection type
integrated

Description

The housing is made of modular panels of folded carbon steel sheet with surface protection by epoxy powder coating in RAL 7032 or 9010 color, joined together by internal bolts. Cartridge shaped filter elements with high efficiency and long life non-woven synthetic fiber media. Small diameter, 145 mm, low pleat profile and good spacing, arrangement with vertical axis, without overlapping, facilitate the outflow and discharge of separated particles. A cleaning system, of the counter-current compressed air impulse injection type, that is fully automatic with electronic control. A Suction unit (certain models only) can be positioned on board, integrated into the machine body and elastically supported. The available impellers, closed with backward blades, allow the machine to be used downstream of high-speed circuits. Silencer bonnet (for units equipped with suction unit), with aerodynamic circuit with flow inversion, capable of ensuring an effective attenuation of the noise emission without penalizing the flow rate. The polluted aeriform enters the inlet and pre-separation chamber laterally and reaches the filters at low speed, in equicurrent with the dust fall. The cartridges are automatically cleaned of the dust accumulated during operation, the unit does not need to be stopped; this is done by injecting a jet of compressed air, supplied by a special distribution system, alternately to the various groups of elements.

Catalogs

KOMBIMAT
KOMBIMAT
9 Pages
