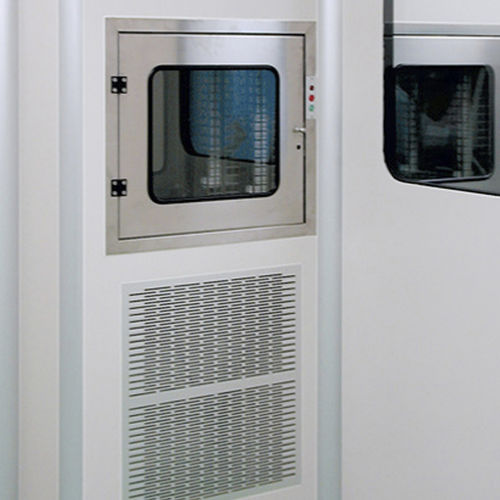

Device to be placed on the transit section between 2 rooms of different contamination class, to prevent the migration of particles from the dirtiest to the cleanest area.
The cleaning differential between the rooms concerned and the direction of flow of the materials to be transferred influence the
the configuration of the unit.
Made of double-walled, painted sheet metal or AISI 304 or 316 stainless steel panels, the pass box
The pass box has seamless internal surfaces. Removable shelves are available on request.
The hinged doors are fitted with a full-light transparent panel in polycarbonate or laminated safety glass with a metal frame.
with a metal frame. Treatment against the propagation of radiation is foreseen where necessary. Closure is by means of a magnetic or electromechanical device.
For large transit sections, up-and-down, roll-up, semi-rigid or flexible doors are available.
or flexible. Lighting, where required, is provided by wall and ceiling mounted LED or fluorescent sources. A command and control module manages and supervises the system starting from the transit request signal.
