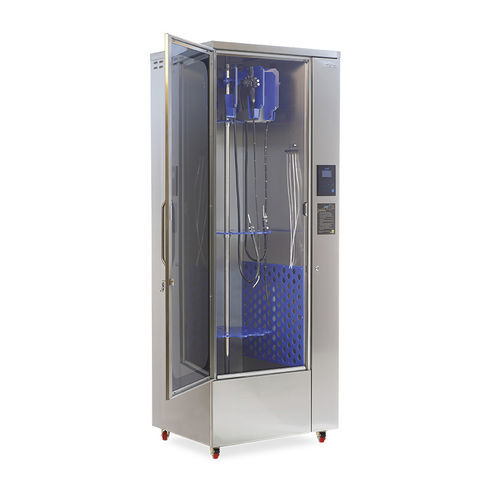

Humidity cabinet MKED 6500

dryingfilteringfor endoscopes

Product overview
The MKED 6500 endoscope drying cabinet is designed to dry, store and maintain disinfected endoscopes ready for reuse in gastroenterology clinics and other medical departments performing endoscopy and bronchoscopy. It provides controlled temperature and humidity, hygienic filtration and user-friendly operation.

Main features

• AISI 304 stainless steel construction
• Capacity options: 7, 9 or 11 endoscopes
• Adjustable internal temperature: 25°C to 40°C
• Graphical LCD interface with digital tracking of temperature, humidity and time
• 4 preset programs and adjustable time/temperature sequences
• Low-energy PTC drying fan for rapid drying
• Replaceable and washable inlet filter; silent, non-vibrating fan
• LED lighting and UV system synchronized with the door (UV 254 nm; UV disabled when door is open)
• 6 antibacterial filtered air discharges to dry internal channels
• 360° rotating, removable endoscope hanging units and adjustable suspended holders

Benefits

• Prevents cross-contamination by eliminating residual moisture in channels
• Reduces maintenance and replacement costs by protecting sensitive components
• Improves workflow with dedicated, organized storage and rapid access
• Helps ensure compliance with hygiene and instrument-handling standards

Applications
Hospitals, outpatient surgical and endoscopy centers, clinics and medical laboratories where secure sterile drying and storage of endoscopes is required.

Technical specifications

• Model: MKED 6500
• Body material: AISI 304 stainless steel
• Capacity: 7 / 9 / 11 endoscopes
• Control: Graphical LCD with digital tracking of heat, humidity and time
• Programs: 4 preset programs
• Temperature range: 25°C – 40°C
• Drying system: PTC drying fan, low energy, rapid drying
• Safety: 2 independent thermal fuses; UV disabled when door is open
• Filtration: Replaceable washable filter at fan inlet
• UV wavelength: 254 nm
• Door: 6 mm tempered glass preventing UV transmission
• Air outlets: 6 antibacterial filtered discharges
• Mobility: 4 lockable castors
• Drainage: Drainage chamber under cabinet
• Power: 220 V, max 1.5 kW
• Dimensions (W x D x H): 700 x 870 x 2200 mm
• Certifications: CE, TSEK and certificates of compliance
