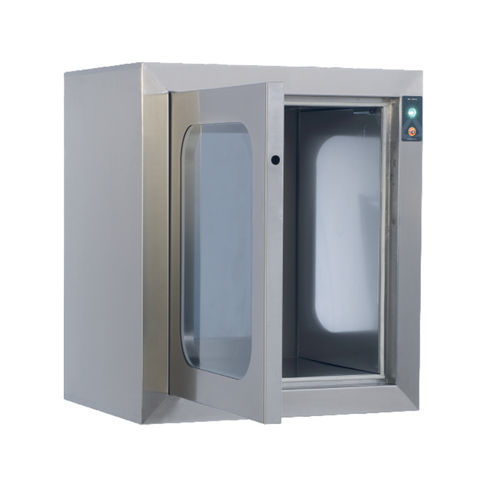

Decontamination transfer hatch MPB 9800

with HEPA filtercustomfor cleanrooms

Product Description
Pass Box (transfer hatch/transfer window) provides a controlled transfer of materials between environments to reduce contamination and cross-contamination. Designed for contamination‑sensitive environments such as cleanrooms and laboratories, it ensures efficient and safe transfer of items between classified and non‑classified zones. The unit can be supplied with an interlock mechanism so that only one door opens at a time, preventing air passage and cross‑contamination. Optional systems include UV sterilization and HEPA filtration. Units are customizable in size and configuration to meet specific operational requirements.

Built-in Features

• Manufactured from 304 grade stainless steel
• Glass doors with stainless steel frame
• Sealed door system preventing air passage
• Rounded inner chamber to prevent bacterial growth
• Magnetic lock system preventing both doors opening at the same time
• Visual and audio warning system in case of undesired operation
• Adjustable keep-open function for locks during power failure
• External Dimensions (WxLxH): 500x650x650 mm

Applications
Suitable for sterilization areas, cleanrooms, pharmaceutical manufacturing, biotechnology laboratories and healthcare facilities where strict hygiene and contamination control are required.

Key Features

• 304 stainless steel construction for hygiene and cleanability
• Interlocking doors to prevent air leakage and cross‑contamination
• Optional UV sterilization and HEPA filtration for enhanced cleanliness
• Customizable sizes and configurations to fit site requirements
• Designed to minimize risk of cross‑contamination during material transfers

Technical Specifications

• Brand: Mixta Medikal
• Model / SKU: MPB 9800
• Material: 304 grade stainless steel
• Door type: Glass doors with stainless steel frame
• Interlock: Dual‑door interlock system (only one door opens at a time)
• Locking: Magnetic lock system preventing simultaneous door opening
• Alarms: Visual and audio warning system for undesired operation
• Fail‑safe: Adjustable keep‑open function for locks during power failure
• Internal design: Rounded inner chamber to inhibit bacterial growth
• Optional systems: UV sterilization, HEPA filtration
• Customization: Flexible production in different designs and dimensions
• External Dimensions (WxLxH): 500x650x650 mm
• Intended use: Cleanrooms, laboratories, sterilization areas, pharmaceutical and biotech facilities
