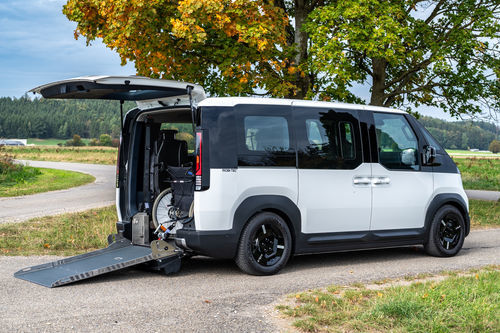

Minivan wheelchair accessible vehicle PV5

electricrear-entry

Vehicle
Battery capacities: 51.5 kWh and 71.2 kWh; wheelbase: 2995 mm; vehicle length: 4695 mm; powertrain: fully electric.

Rear floor cutout and accessibility equipment

• KTL-coated floor tray; floor lining; LED side lighting in the floor tray; taxi ramp; bumper center reinstalled to rear box.
• Modification of the reversing warning system to match the changed bumper center.
• 4-point wheelchair restraint system with front retractors electrically releasable from the rear; 2 tension retractors at the rear; automatic shoulder belt for the wheelchair occupant; restraint for the wheelchair occupant according to DIN 75078/2.

Special feature
The Kia PV5 provides the widest floor cutout at 925 mm width. With an additional aluminium system floor it is possible to transport two wheelchairs.

Back-Protect head and backrest
Compact adjustable head and backrest adaptable to each person; shoulder belt included in the system. With two handles the unit can be easily swung forward or backward when not in use. Back-Protect can be installed in cars and vans; not possible on lowered vehicles in combination with swivel-fold seats in the 3rd row. The integrated 3-point belt keeps the passenger safely and compliantly restrained while providing comfort.

Technical specifications

• Battery capacities: 51.5 kWh; 71.2 kWh
• Wheelbase: 2995 mm
• Vehicle length: 4695 mm
• Powertrain: fully electric
• Floor cutout width: 925 mm
• Floor tray: KTL-coated, lined
• Lighting: LED side lighting in floor tray
• Ramps: taxi ramp
• Bumper modification: bumper center reinstalled to rear box; reversing warning system adapted
• Wheelchair restraint system: 4-point system; front retractors electrically releasable from the rear; 2 tension retractors at the rear; automatic shoulder belt; restraints according to DIN 75078/2
• Option: transport of two wheelchairs possible with additional aluminium system floor
• Back-Protect: compact adjustable head and backrest with integrated 3-point belt; swing-away operation
