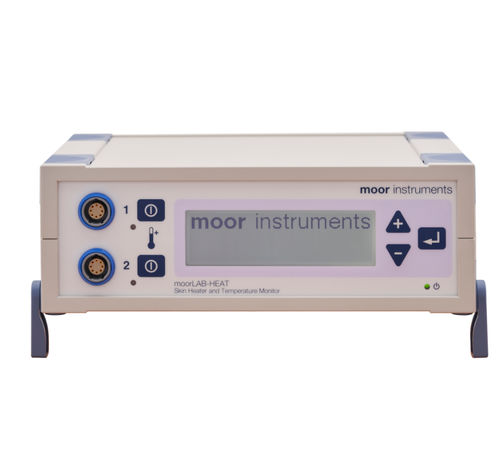

Temperature monitor and regulator MOORLAB-HEAT

Overview
The moorLAB-HEAT Skin Heat Controller provides precise, localised skin heating for research and educational life-science applications. Designed for integration with laser Doppler monitors, imaging systems and tissue oxygenation monitors, the unit supports reproducible heating protocols for blood-flow and oxygen-response assessments.

Advantages

• Independent dual-channel heating and monitoring for two simultaneous measurement sites
• Programmable temperature/time protocols for repeatable stimuli
• Direct integration with Doppler blood-flow and tissue-oxygenation instrumentation
• Controlled heating rates with high temperature resolution (0.1°C)

Key features

• Localised skin temperature control — operational heating range up to 47°C
• Temperature resolution 0.1°C; accuracy typically ±0.5°C
• Analogue outputs: 2 × 0–5 V (BNC)
• Continuous operation mode with two measurement channels
• AC mains: 100–230 V ±10%, 50–60 Hz, 30 VA

Operational notes

• Can operate stand-alone or be remotely controlled by moorVMS-PC to program temperature/time protocols
• Both channels may be set to different temperatures; system also functions with a single probe connected
• Heating probes are supplied calibrated — no user calibration required; annual factory servicing recommended
• Compatible with iontophoresis when using appropriate probes/chambers
• Warranty: 3 years for main unit; heating probes typically covered for 6 months

Technical specifications

• Model: moorLAB-HEAT (Skin Heat Controller)
• Analogue outputs: range 0–5 V; number of outputs: 2; connectors: BNC sockets
• Electrical safety classification: Class I (protectively earthed)
• EMC: complies with EN 61326-1:2021 for laboratory use
• Intended use: localised skin heating for research and educational life-science applications (not a medical device)
• Measured parameter: Temperature; measurement range: 5–50°C; accuracy: ±0.5°C; sampling rate: 40 Hz
• Temperature control: range 20°C (or ambient) to 47°C; resolution 0.1°C
• Cleaning: wipe with a cloth soaked in isopropanol or isopropanol/water mix; not suitable for sterilisation
• Mode of operation: continuous; number of measurement channels: 2
• Operating environment: indoor laboratory use; temperature 15–30°C; atmospheric pressure 75–106 kPa; humidity 0–75% non-condensing; max altitude 2000 m; pollution degree 2
• Power: AC mains 100–230 V ±10%, 50–60 Hz, 30 VA
• Storage/transport: temperature 5–45°C; atmospheric pressure 75–106 kPa; humidity 0–75% non-condensing
• Weight: under 3 kg
