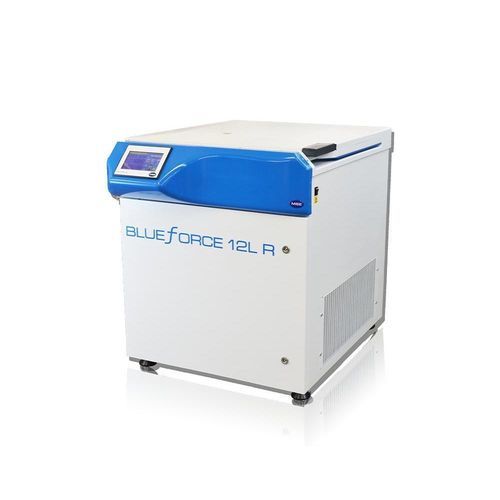

Clinical centrifuge BlueForce 12L R+

for blood banksfor blood phase separationblood

Product type
High-capacity refrigerated centrifuge designed for large-volume blood processing and clinical laboratory use

Overview
The BlueForce 12L R+ is the result of targeted development with a blood transfusion institution to meet the operational needs of high-throughput blood separation. Engineered for continuous clinical workflows, it combines a refrigerated chamber with advanced safety and diagnostic features to ensure reliable, repeatable performance in transfusion and blood-processing environments.

Key specifications

• Maximum speed: 4,700 rpm
• Maximum RCF: 7,630 x g
• Capacity: 6 × 2000 ml
• Speed range: 500 – 4,700 rpm
• Noise level: 62 dB
• Temperature range: -20°C to +40°C (refrigerated)

Safety & operational features

• Automatic imbalance detection with immediate shut-off
• Automatic lid locking during run and safety interlocks
• Brushless motor with frequency inverter for controlled torque
• Reinforced chamber with protective ring to contain rotor failures
• Electrical protection filter and motor overheat protection
• Overspeed protection and built-in diagnostic tests
• Automatic maintenance reminder alerts

Operation & control

• Timer: 1s > 99h 59min or continuous operation
• Brake/end-of-run: 10 standard rates + Blue Touch function (3 additional end-of-run modes)
• Acceleration profiles: 10 selectable rates
• Display: 180 mm-wide resistive HMI
• Drive: Brushless induction motor
• Control: Programmable Logic Controller (PLC)

Power & electrical

• Power consumption: approx. 800 W at operating speed
• Power supply: 360V–415V, 32 A, 3 phases + N, 50/60 Hz

Dimensions & weight

• Height: 1,250 mm
• Width: 810 mm
• Depth: 980 mm
• Weight: 390 kg

Downloads & media

• Product video available (link indicated on product page)
• Product brochure available as downloadable PDF

Technical specifications

• Model name: BlueForce 12L R+
• Catalogue number: MSF120.CR2.KG+
• Maximum speed: 4,700 rpm
• Maximum RCF: 7,630 x g
• Capacity options: 6 × 2000 ml
• Speed range: 500 – 4,700 rpm
• Noise level: 62 dB
• Temperature control: -20°C to +40°C (refrigerated)
• Safety systems: imbalance detection with auto shut-off; automatic lid locking; overspeed protection; motor overheat protection; reinforced chamber with protective ring
• Drive: Brushless motor controlled by frequency inverter
• Control system: PLC with 180 mm-wide resistive HMI display
• Timer: from 1 second up to 99h 59min or continuous
• Brake / end-of-run functions: 10 + Blue Touch function (3 additional end-of-run modes)
• Acceleration rates: 10
• Built-in diagnostics and automatic maintenance reminder
• Power consumption: approx. 800 W at operating speed
• Power supply requirement: 360V–415V, 32 A, 3 phases + N, 50/60 Hz
• Dimensions (H×W×D): 1250 mm × 810 mm × 980 mm
• Weight: 390 kg
