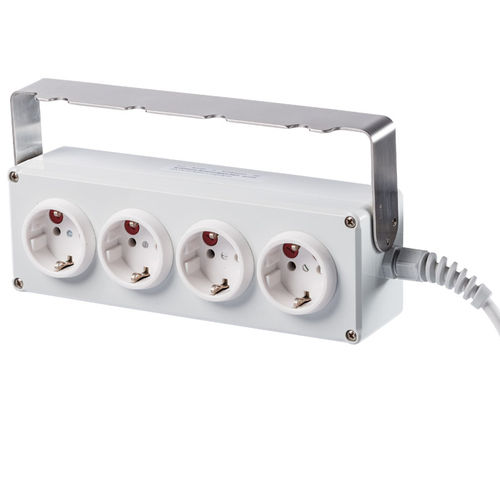

Four-socket power point for operating medical devices which meet the IEC 60601 series standards applicable in class 2 areas as defined in VDE 0107. They satisfy the requirements of IEC 60601-1-2-13 and may therefore also be operated in combination with medical ventilators and inhalational anaesthetic apparatus.
Bracket to secure plugs against unintentional removal
(can only be removed using a special tool)
2 G fuse inserts 5 x 20 / 2AT (DIN 41571)
CONTROL INDICATOR (OPTIONAL)
max. 450 Watt per socket,
max. 1,800 Watt total
plug on the right hand side, in accordance with DIN 49441, Design R2
3.0 m cable, white
5.0 m cable, white
2.5 m coiled cable, white
5.0 m crush-resistant cable, orange
2 rigid mounting clamps for mounting on standard size rails
1 pivoting mounting clamp for mounting on standard size rails
1 rigid mounting clamp for mounting on tubes
1 pivoting mounting clamp for mounting on tubes
