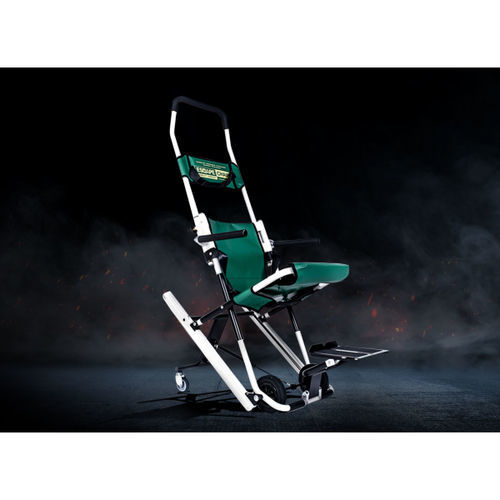

Stair-climbing evacuation chair CFindoorfoldingon casters
Add to favorites
Compare this product
Characteristics
- Type
- stair-climbing, indoor
- Features
- folding, on casters, with adjustable backrest, height-adjustable, ergonomic
- Other characteristics
- with armrests, for people with reduced mobility
Description
Overview
This model is specifically designed for people with reduced mobility and for wheelchair users. Armrests provide additional security during evacuation and assist with transfer from a wheelchair into the Escape-Chair. The footrest supports the legs and helps maintain circulation when the evacuee must remain seated for an extended period (for example, in a refuge area or assembly point). A footrest is recommended for evacuations from buildings of five floors or more.
Features
Resources
Datasheet: Escape-Chair CF - Escape Chair CF Data Sheet (English, UK) available for download.
Technical specifications
This model is specifically designed for people with reduced mobility and for wheelchair users. Armrests provide additional security during evacuation and assist with transfer from a wheelchair into the Escape-Chair. The footrest supports the legs and helps maintain circulation when the evacuee must remain seated for an extended period (for example, in a refuge area or assembly point). A footrest is recommended for evacuations from buildings of five floors or more.
Features
- Designed for rapid evacuation.
- Operable by a single attendant.
- Ready for use within seconds.
- Eliminates the need to carry evacuees manually.
- Descent speed controlled by the operator (no additional brake required in standard use).
- Easy to manoeuvre into evacuation flows and stairways.
- Compact design minimises obstruction on stairs.
- Integrates with existing emergency procedures and plans.
- Safe sealed gliding-belt cassette for controlled descent.
- CE, TÜV NORD & ISO certified.
Resources
Datasheet: Escape-Chair CF - Escape Chair CF Data Sheet (English, UK) available for download.
Technical specifications
- Material (frame): enamelled aluminum
- Lightweight, easy to operate
- Ready for use within a few seconds
- Unfolding stand with wide wheelbase for horizontal transport
- Double ergonomic backrest
- Gliding-belt system in a safe, exchangeable sealed cassette
- Includes fire-retardant dust cover
- Anti-slip on operating handle and lower bracket
- Maximum carrying capacity: 225 kg
- Maximum staircase angle: 45°
- Two height-adjustable operating handles
- Comfort seat
- Footrest (serves as support; not intended to carry full body weight)
- Armrests
- Headrest including immobilisation strap
- Padded upholstered headrest
- Weight: approx. 15 kg
- Dimensions folded (H x W x D): 116 x 57 x 21 cm
- Warranty: 10 years (excludes general wear and tear)
- 5-language manual included
- Set of wall hooks
- Identity sign: Escape-Chair
- Optional: castors with brake (for stairs ≤35°; brake must be engaged before descending)
