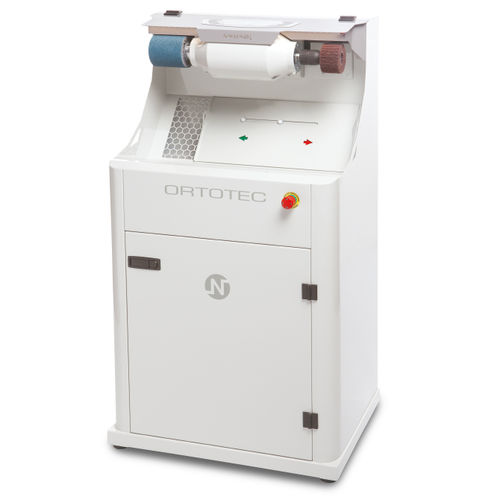

Orthopedic insole manufacturing grinding unit Ortotec

polishing

Overview
Ortotec sets new standards in insole grinding with a wide working area and an extraction system that allows bidirectional selection of the working side.

Key message
The current generation results from over 20 years of experience in grinder manufacture, delivering consistent performance adapted to orthopedics and podiatry workshops.

Performance and reliability
A 1 hp motor coupled with a high-performance turbine extraction system provides the power required for continuous workshop use and efficient dust removal.

Touch control panel
The touch-sensitive keyboard displays and selects grinding, extraction and lighting functions. Membrane keys facilitate cleaning and prevent dust ingress, prioritizing frequently used functions for fast operation.

Efficiency
Compact design combined with a large usable working area and high extraction flow rate enables fast processing of insoles, often in a single pass.

Suction system
Sliding flap system lets the operator select the extraction port closest to the working area, maximizing local suction performance.

Access and maintenance
Front-opening door provides easy access to the removable dust-collection bag for quick emptying and maintenance.

Lighting
LED lighting is focused on the working area to improve visibility during finishing operations.

Guaranteed flow rate
Professional continuous-duty suction turbine with antistatic system reduces electrostatic charge in dry dust extraction.

Gallery

• Multiple product images showing overall unit, working area, control panel and accessories.

Technical specifications

• Motor power: 1 hp (approx.)
• High-performance turbine extraction system
• Bidirectional selection of the working side
• Wide usable working space (compact grinder reference)
• Touch-sensitive control panel with membrane keys for easy cleaning
• Sliding flap system to select extraction port
• Removable dust collection bag with front access
• LED lighting focused on working area
• Professional suction turbine with antistatic system
