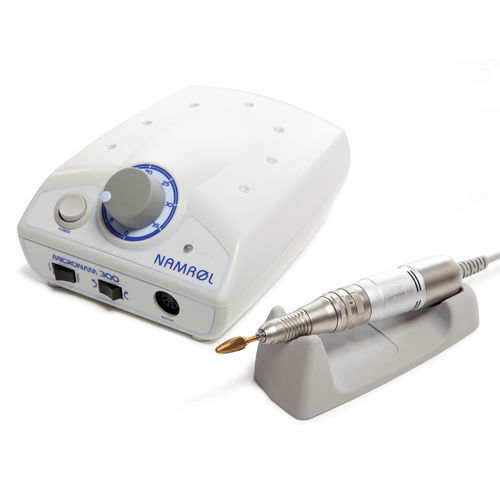

Podiatry micromotor Micronam 300

electricpedal-operatedcomplete set

Overview
Micronam 300 is a compact, high-performance micromotor system designed for podiatry. The unit combines a 140 W control unit with a lightweight GT35B handpiece to reduce operator fatigue while maintaining smooth, quiet operation across the full speed range.

Control unit

• Protection system. Automatic shut-off to prevent malfunction or motor overload.
• Control panel. Intuitive panel with reverse direction and selection for manual or pedal operation.
• Soft start. SMT electronics provide a progressive motor start for precise handling.
• Power under control. 140 W motor power with speed regulation from 1,000 to 35,000 rpm.

GT35B Handpiece

• Ergonomic handling. Redesigned, lightweight handpiece to minimize hand fatigue during long procedures.
• Weight and dimensions. Handpiece weight: 139 g (GT35B); micromotor indicated as 143 g; handpiece length: 130 mm.
• Operation. Minimal vibration and low noise with smooth performance at low and high speeds.
• Quick change system. Fast-opening chuck for secure and rapid burr changes.

System / Box contents

• Control unit
• GT35B micromotor handpiece
• Control pedal
• Handpiece stand

Technical specifications

• Model: Micronam 300
• Brand: Namrol
• Control unit power: 140 W
• Speed range: 1,000 - 35,000 rpm
• Soft start: SMT electronics
• Protection: Automatic shut-off for malfunction/overload
• Control options: Reverse direction; manual or pedal operation
• Handpiece model: GT35B
• Handpiece weight: 139 g (GT35B)
• Micromotor weight: 143 g (as indicated)
• Handpiece length: 130 mm
• Design: Ergonomic, compact, minimal vibration and quiet operation
• Quick opening system: Fast and secure burr changes
• System weight: Control unit approx. 1.2 kg
