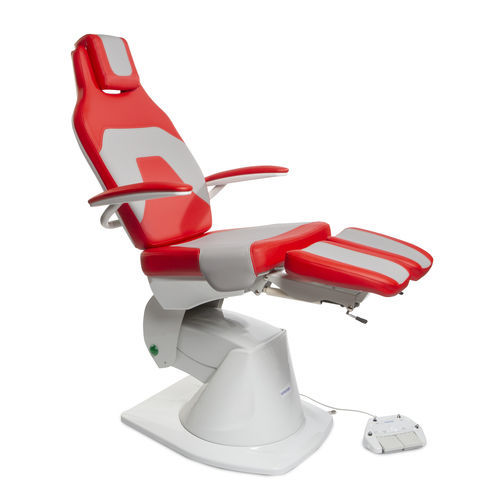

Podiatry examination chair Zeta

electricfoot-operatedreclining

Overview
Namrol is shaping the future of professional podiatry chairs. A combination of precision and technological innovation, Zeta offers a patient chair designed to expand treatment options and improve workflow in podiatry clinics. It is engineered for repeated professional use and configurable to clinical needs.

Design and Comfort
The Zeta chair features an anatomical backrest with low-hardness foam for relaxed patient positioning. The exclusive seat design with side padding facilitates patient access and transfers. The headrest offers multiple fixed, anatomically adapted positions for precise support.

Positioning and Movement
Zeta reaches a perfectly flat position at any height to maximise operator ergonomics during examinations and treatments. The swivel base, minimum floor height and folding arms provide easy patient access. Select versions include powered base, back and tilt for effortless positioning (available on specific models such as Zeta 3).

Control and Operation
The multifunction foot switch controls all chair functions and includes a home position plus two programmable memory positions. The ergonomic handset features large buttons and a hook for bedside placement. A wireless foot control option is available to eliminate cords and allow free placement in the treatment room.

Durability and Performance
Low-noise, durable, high-speed actuators deliver high performance and include a mechanical endstop for fail-safe protection. These characteristics make Zeta suitable for intensive, long-term professional use.

Legrests and Access
Each legrest includes easy-to-reach release handles for smooth one-handed operation; electrical adjustment is available on selected versions (e.g., Zeta 5). Legrests are articulated with an angular range of ±30°, mounted on telescopic slides with up to 300 mm travel. They tilt and lift vertically up to 90°, returning to a perfectly vertical rest position.

Additional Functionalities
360° rotation with foot lever provides controlled locking. Padded side access improves comfort and simplifies patient transfers.

Optional Accessories

• Single leg support (electrically operated) – models SN-727 and SN-728
• Paper roll holder (ergonomic, easy assembly; max length 59 cm, diameter 12.5 cm)
• Debris/waste collection tray with quick clamping system in stainless steel
• Magnifying lamp support (jointed headrest with multiple adjustment possibilities)
• Scialytic lamp support
• Protection screen attachable to either side of the chair
• Hand control (ergonomic handset with large buttons and bed hook)
• Wireless foot control (removes cords and obstacles)

Upholstery & Finishes (examples)

• Chrome cod. 11205 / Sky Blue cod. 1609
• Chrome cod. 1205 / White cod. 1198
• Red cod. 1454 / Chrome cod. 1205
• Anthracite cod. 1197 / Cobalt Blue cod. 1182
• Violet cod. 1354

Technical specifications

• Denomination: Zeta
• Available motor configurations: 3, 4 or 5 motors
• Actuators: low-noise, durable, high speed / high performance with mechanical endstop
• Positions: can reach flat position at any height; powered base/back/tilt in specific versions
• Legrests: articulated; angular width ±30°; telescopic slides up to 300 mm travel; tilting and vertically liftable to 90°; vertical rest position
• Rotation: 360° rotation with foot lever and controlled locking
• Headrest: adjustable with anatomically adapted fixed positions
• Controls: multifunction foot switch with home + two memory positions; ergonomic handset; wireless foot control option
• Seat: exclusive side padding for easy patient access
• Optional accessories: single leg support (SN-727, SN-728), paper roll holder, debris tray (stainless steel), magnifying/scialytic lamp supports, protection screen, hand control, wireless foot control
• Upholstery: multiple colours and chrome/finish options (codes listed above)
