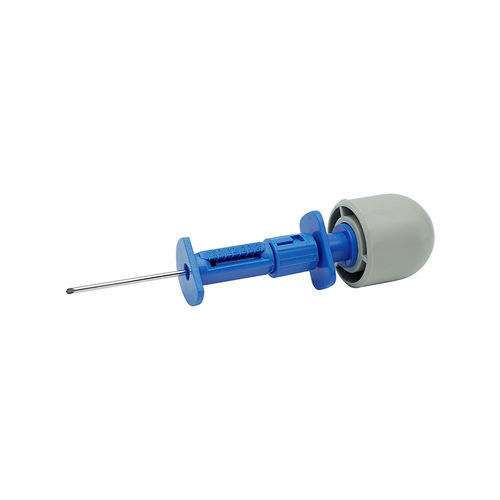

Bone marrow biopsy needle 12823

sterile7G18G

Product Overview
The Adjustable Bone Marrow Puncture Needle is a sterile, non-pyrogenic medical device designed for puncturing the bone marrow cavity to aspirate bone marrow fluid or obtain tissue samples. It is suitable for clinical assessment and treatment monitoring, providing reliable pathological evidence.

• 7-18G, needle length 68mm-150mm, regular wall
• Sterile, non-pyrogenic
• Luer lock/compatible connectors for device attachment

Product Features
Intended Use
This product is intended to puncture into the bone marrow cavity to aspirate bone marrow fluid or obtain bone marrow tissue samples, providing pathological evidence for clinical assessment and treatment monitoring
Structure and Composition
Stylet hub, stylet (sharp or blunt), needle tube, needle hub and protective cap, scalp marking
Main Material
PP, ABS, SUS304 Stainless Steel Cannula, Silicone Oil
Shelf Life
5 years
Certification and Quality Assurance
Manufacturing site is in compliance with ISO 13485 and ISO 9001 Quality System

Specification
Needle Length
68mm-165mm
Needle Size
7G-18G

Technical Characteristics / Specifications

• Adjustable needle length: 68mm-165mm
• Available needle sizes: 7G-18G
• Regular wall construction
• Sterile and non-pyrogenic
• Luer lock and compatible connectors for device attachment
• Components: stylet hub, stylet (sharp or blunt), needle tube, needle hub, protective cap, scalp marking
• Main materials: Polypropylene (PP), Acrylonitrile Butadiene Styrene (ABS), SUS304 Stainless Steel Cannula, Silicone Oil
• Shelf life: 5 years
• Quality certifications: ISO 13485 and ISO 9001 compliant manufacturing
